Dongfeng 12T Hydraulic truck mounted crane 12T Lorry crane 0086-13635733504
2017-03-03

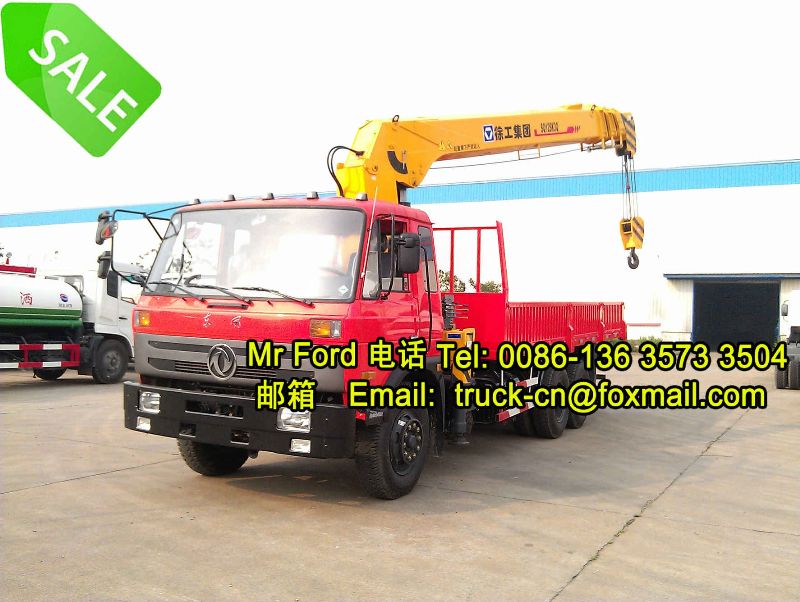

Dongfeng 12T Hydraulic truck mounted crane 12T Lorry crane 0086-13635733504
NEW DONGFENG 12T Lorry crane
1 crane capacity 12T
2 Cummins engine 210hp
3 robust quality cargo box
| Chassis model | EQ1258KB3GJ1 | |
| External dimensions (L×W×H) | (mm) | 11100×2500×3850 |
| Van dimensions (L×W×H) | (mm) | 7500×2294×800 |
| Loading mass | (kg) | 12120 |
| Whole equipped car mass | (kg) | 12685 |
| Max. Total mass | (kg) | 25000 |
| Shaft distance | (mm) | 5370+1350 |
| Closing angle/departing angle | (°) | 32 and 12 |
| Front suspension/ Rear suspension | (mm) | 32 / 13 |
| Front tread/ Rear tread | (mm) | 1940, 1860/1860 |
| Steering type | Hydraulic assitant | |
| Axle number | 3 | |
| Leaf spring number (Front and rear) | 8 and 12 | |
| Engine model | B210 33 | |
| Fuel | Diesel | |
| Max power | (kw/hp) | 155 / 210 |
| Exhaust volume | (ml) | 5900 |
| Emission standard | Euro 3 | |
| Tire model | 10.00-20 | |
| Tire number | 10 | |
| Top speed | (km/h) | 85 |
| Seat numbers | 3 | |
| Crane capacity | (Ton) | 5 |
| Boom number of crane | 3 |
