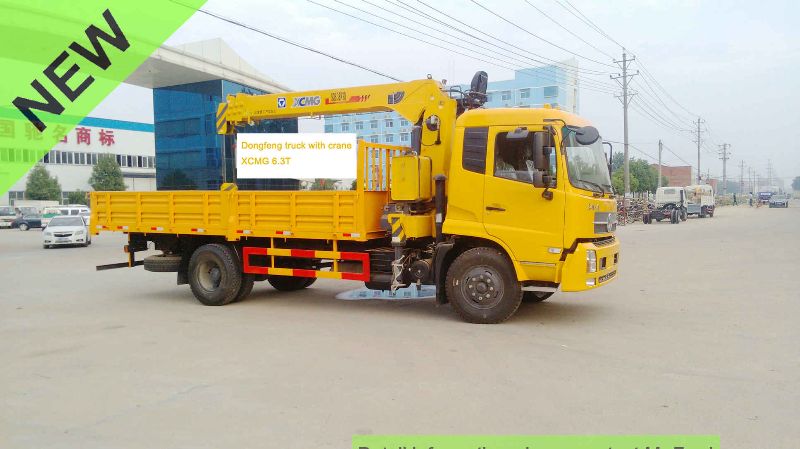

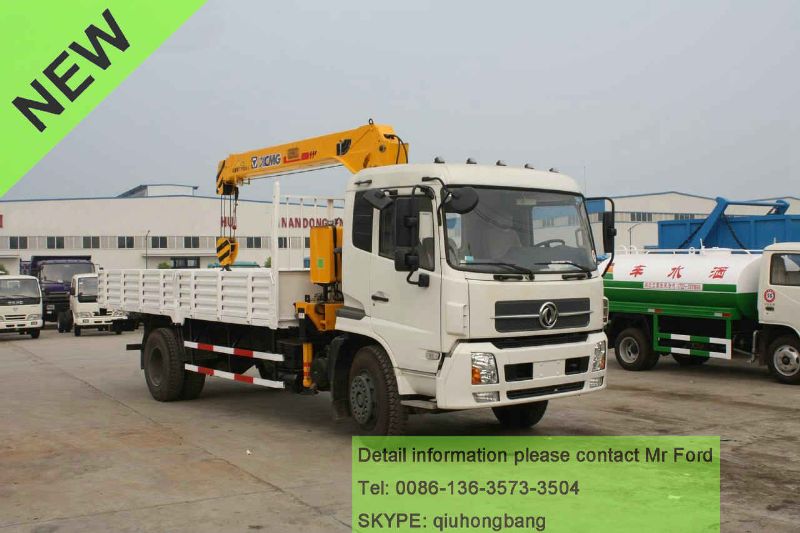

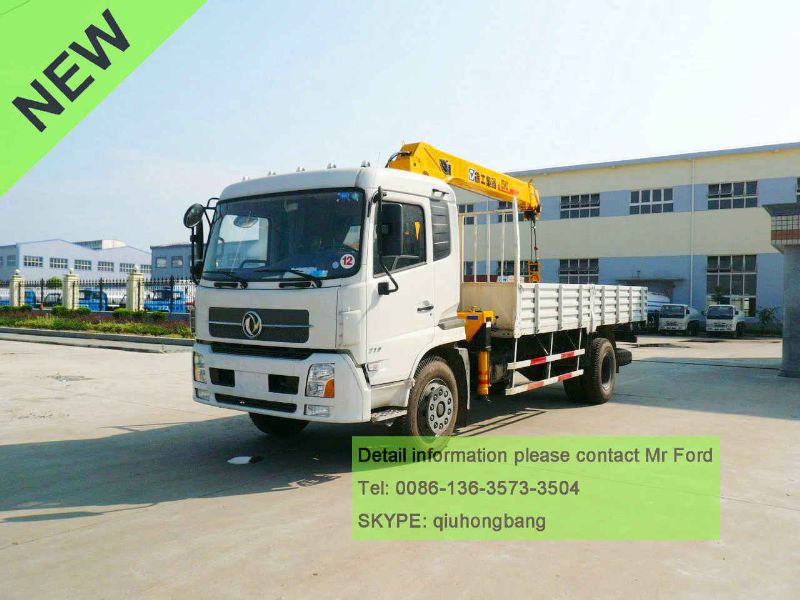

Dongfeng kinrun 6.3T Crane truck
1.Dongfeng chassis
2.crane capacity 6.3T
3.Engine power 170-190hp
|
DONGFENG single axle truck mounted crane |
|||
|
MODEL |
DONGFENG single axle truck mounted crane |
Dimension |
8700*2495*3460mm |
|
Chassis type |
DFL1120B |
Cargo body size |
5400×2290 ×550(mm) |
|
Total mass |
12495 (kg) |
Appearance / departure angle |
20/12 (°) |
|
Rated payload |
4800(kg) |
F/R suspension |
1430/2570(mm) |
|
Kerb weight |
7500 (kg) |
Maximum speed |
90(km/h) |
|
Engine |
ISDe180 30/ISDe185 30 |
||
|
Displacement |
4500/6700(ml) |
Power |
132/136 (kw) |
|
Manufacturer |
Dongfeng Cummins Engine Co., Ltd. |
||
|
Emission standard |
GB3847-2005,GB17691-2005 EURO3 |
||
|
Number of the axles |
2 |
Front tread |
1880(mm) |
|
Wheel base |
5000,4700(mm) |
Rear tread |
1800(mm) |
|
Number of the tires |
6 |
Tire type |
9.00-20,9.00R20 |
|
Fuel type |
diesel |
Number of the springs |
7/9+6 |
|
Axle load |
4980/7515 |
Cab Passengers |
3 |
|
OTHERS |
weight 2100Kg, lifting weight is 6.3T Our factory produced truck mounted crane series, strong power, high speed, strong climbing capability, high lifting height, widely operating range. Using well-known hydraulic pump system can achieve rapid movements, high efficiency, save energy. The advantages of aircraft are flexible, easy to operate, work efficient, safe, reliable and etc. It can be used in a variety of loading and unloading, installation of lifting operations, especially for lifting in outdoor, emergency operations and operations in stations, ports, warehouses, construction sites and etc. Truck mounted crane can be modified to multi-function sprinkler truck. |
||
