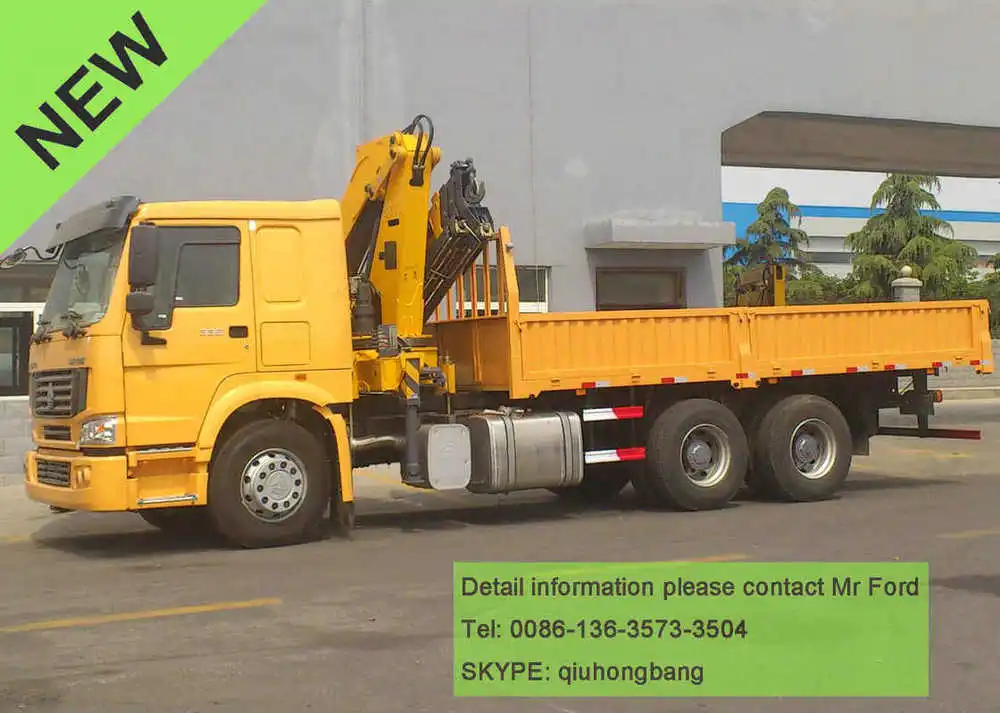

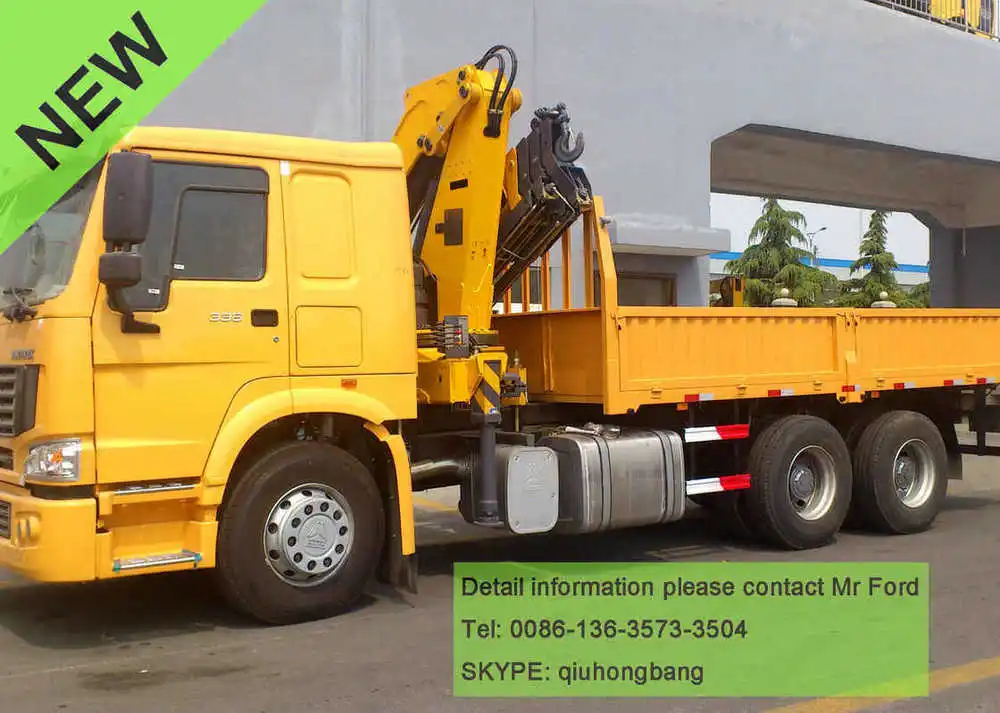

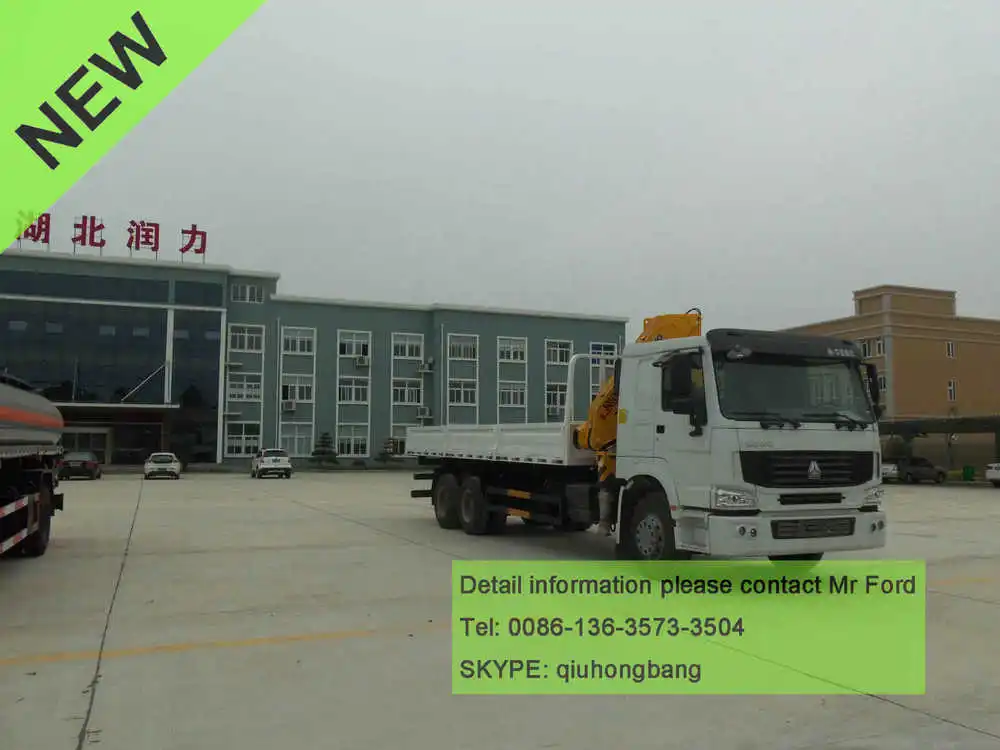

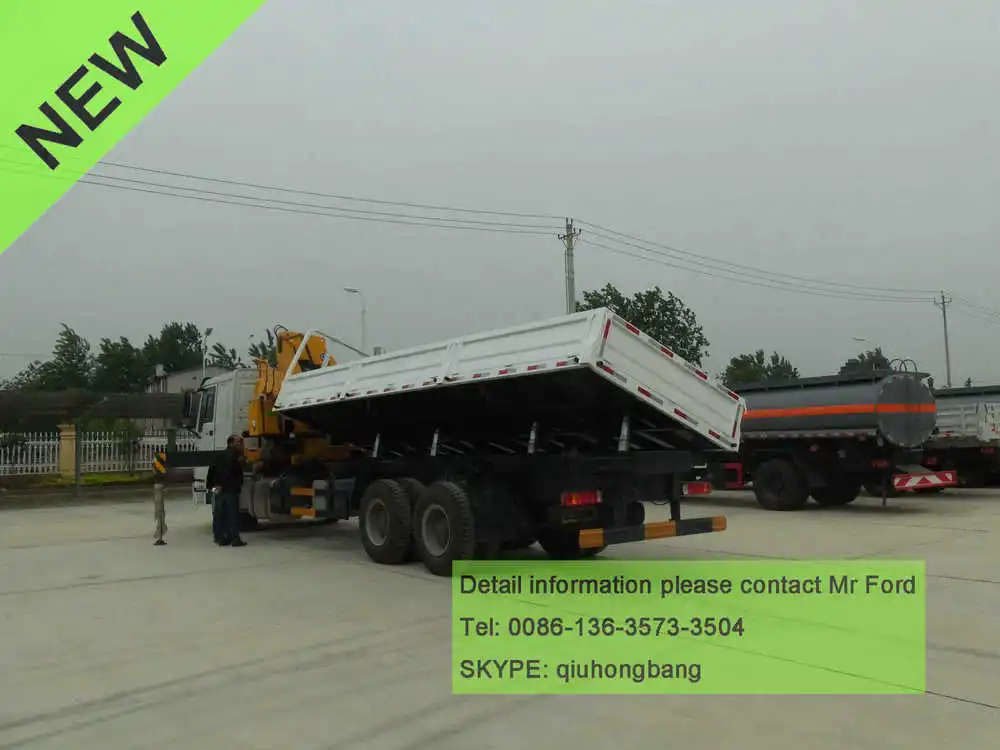

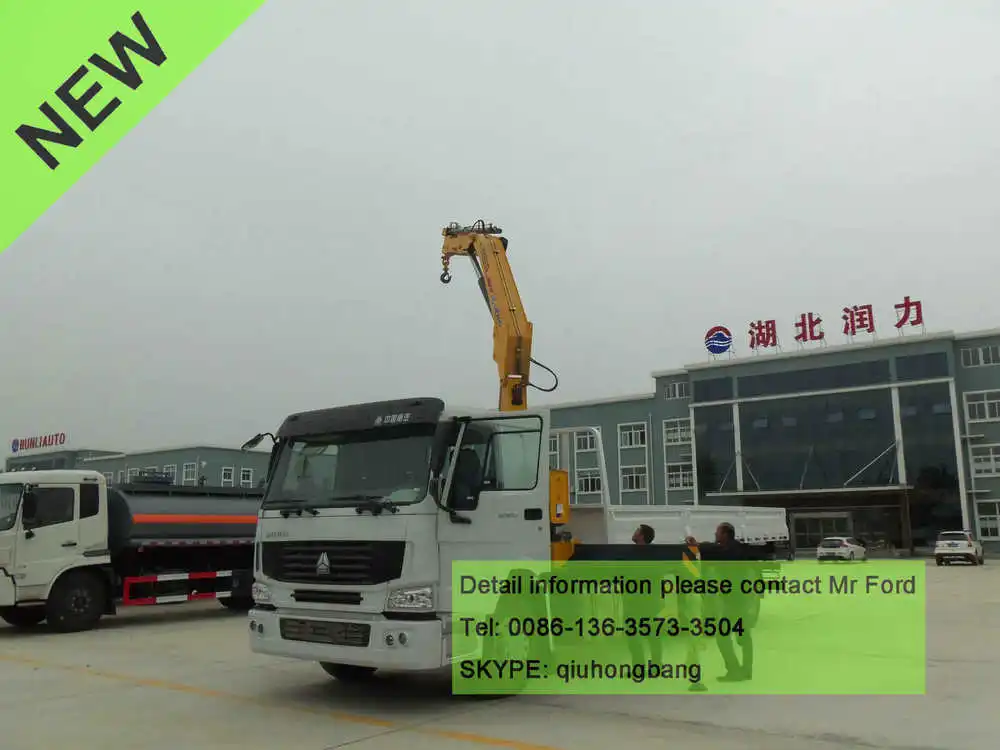

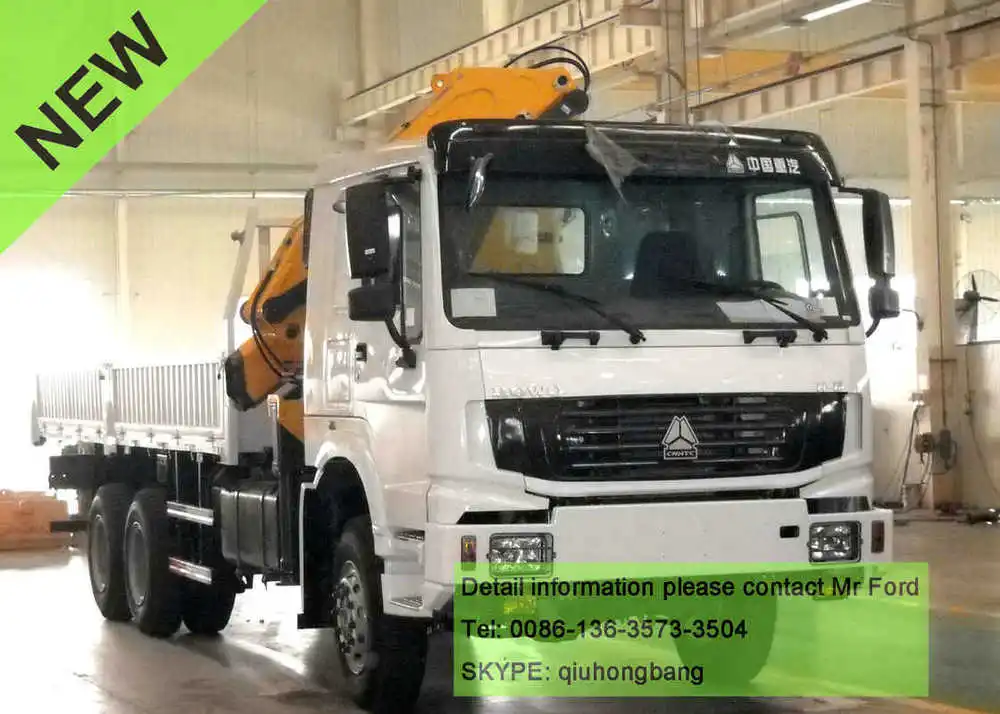

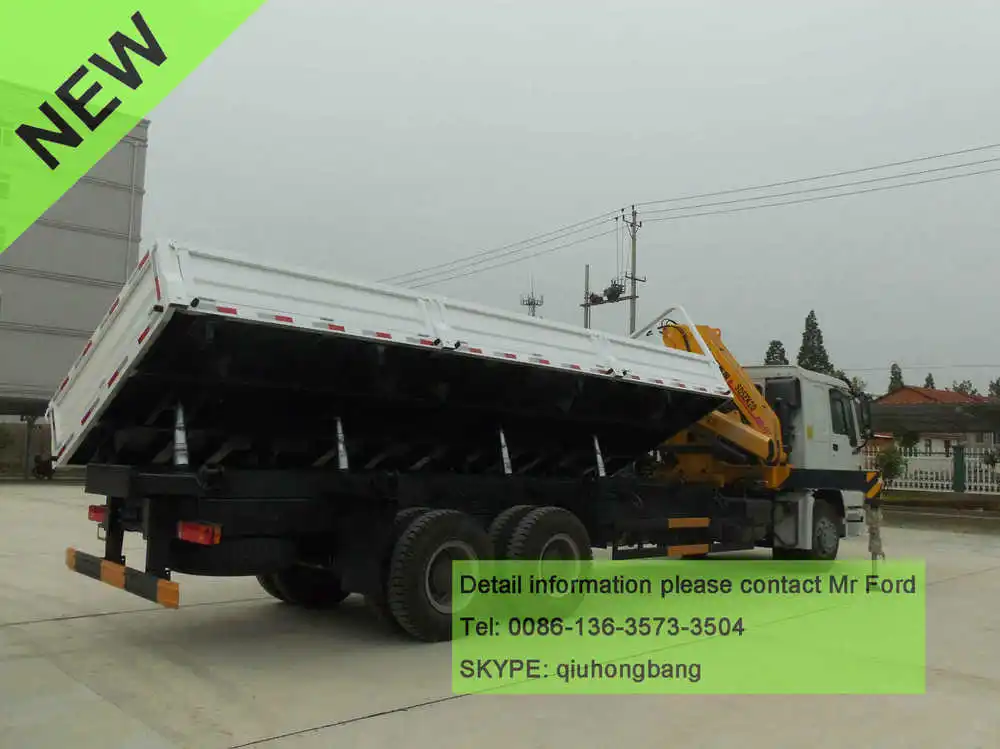

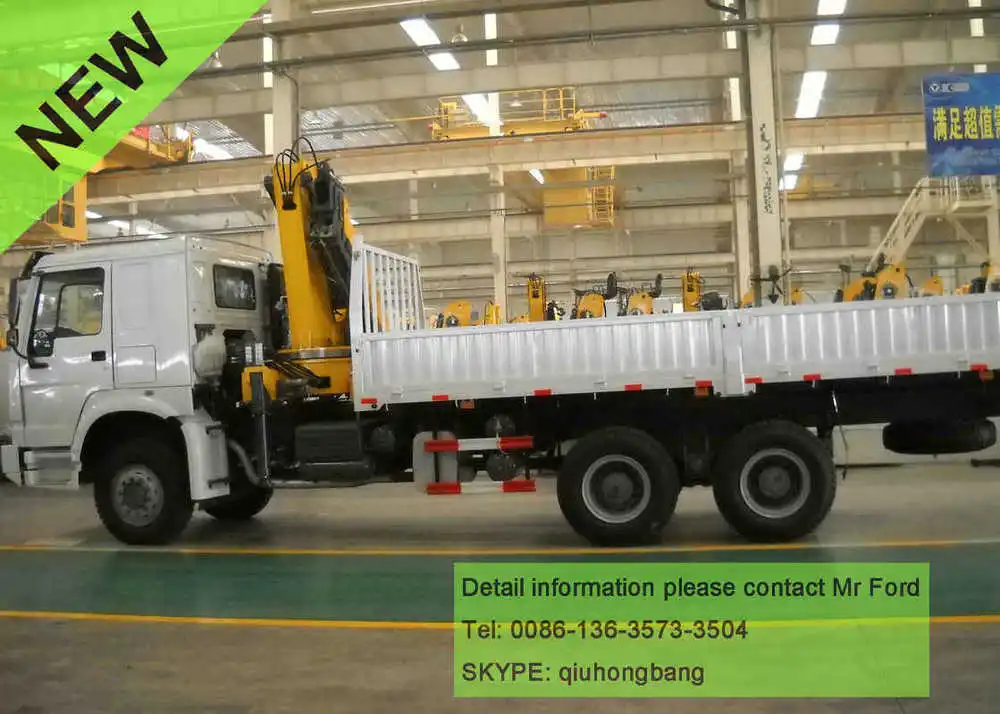

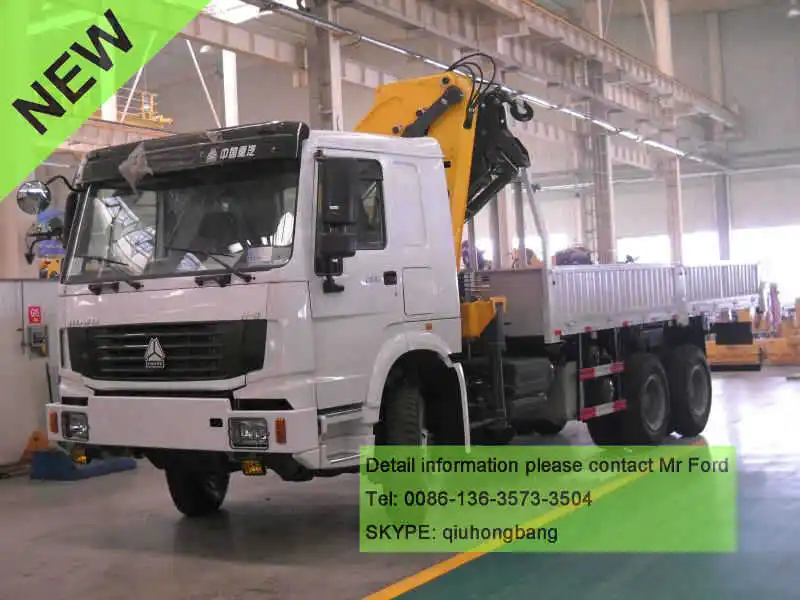

HOWO 380hp side dump truck tipper truck Articulated Boom Lift Crane Truck

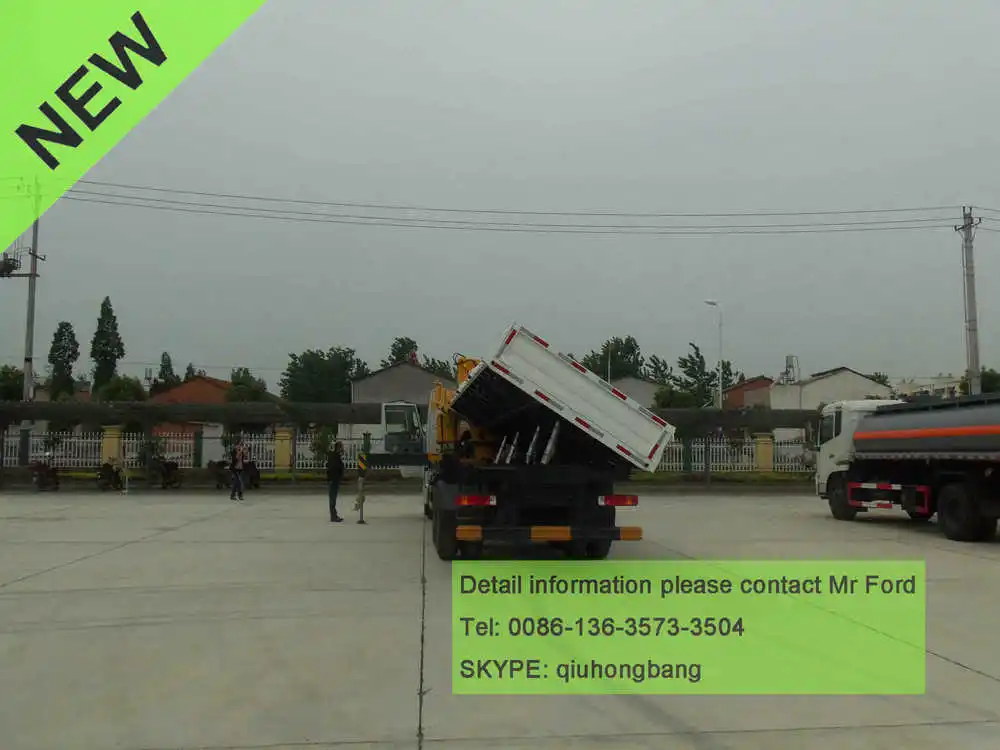

what is features of our HOWO 380hp side dump truck tipper truck folding boom truck crane

SINO SHACMAN ,DONGFENG DFL,FAW,BEIBEN NORTH BENZ , HOWO ,FOTON ,JAC ISUZU Chassis,DF NISSAN-UD Chassis,HINO Chassis, JMC Chassis,JAC Chassis, Hongyan IVECO, Hualing-CAMC Chassis,MAN chassis or tractor tank trailer and so on all are optioanl

1.Factory direct sale

2.Specialized in Trucks 10 years

3.a competitive price.

4.with CCC,ISO9001,SGS,ASME

5.chassis is optional SINO SHACMAN ,HOWO, DFL, HINO /UD, BENZ, MAN ,ISUZU 4x2 ,4x4,6X4 ,6x6,8x4,8x8 .

6.Engine min horse power is 120HP~ 240HP~380HP

7.Crane Loading Capacity: 2Tons to 25Tons .

HOWO 380hp side dump truck tipper truck folding boom truck crane Specification

Cabin	Driving type 6x4
Cabin	HOWO 76 cab, with air condition and one bed, 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	Overall dimensions (L x W x H) mm	10000×2500×3710
	Carriage Size (L x W x H) mm	5600×2300×1100
	Wheel base (mm)	3225+1350
	Wheel track (front/rear) (mm)	2022/1800
	Approach/Departure angle(°)	10/16.
Weight in KGS	Tare Weight	13200
	payload	25000
	Front axles loading capacity	1x7000
	Rear axles loading capacity	2x16000
Engine	Brand	Sinotruck
	Model	WD615.96C
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	380 HP
	Emission standard	Euro 3
Gearbox	HW15710,10 Forwards gear & 1 reverse gear

Model	SQ5ZK2Q	Unit
Max Lifting Moment	10.5	t.m
Max Lifting Capacity	5000	kg
Recommend Power Needed At Recommend Oil Flow	18	kw
Max Oil Flow of Hydraulic System	25	L/min
Rated Pressure Of Hydraulic System	28	MPa
Oil Tank Capacity	90	L
Rotation Angle	(360°) All Rotation	^.
Crane Weight	2011	kg
Installation Space	1050	mm


Advantage

HOWO 380hp side dump truck tipper truck folding boom truck crane1.Sinotruk chassis 380hp
2. Famous brand crane 5T
3. Hydraulic

Material

Q235A carbon steel made by WUHAN STEEL CORPORATION

Payment Terms

T/T,
Loading Port: Shanghai or other port in China
MOQ: 1 SET
Payment: T/T
30% down payment, 70% balance paid before shipment,all by T/T
Produce time: 17 days upon receipt of deposit from buyer
Documents: B/L, Commercial invoice, Packing list, Certificate of origin etc all
