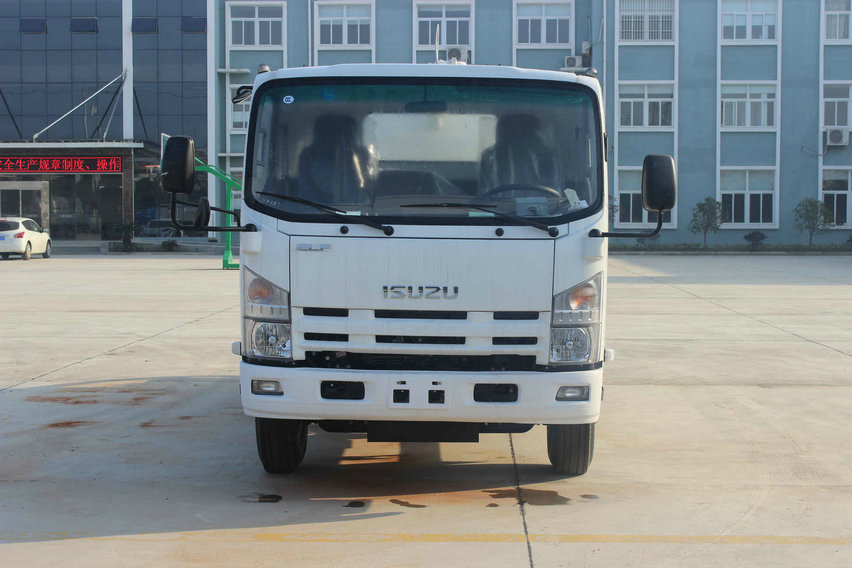

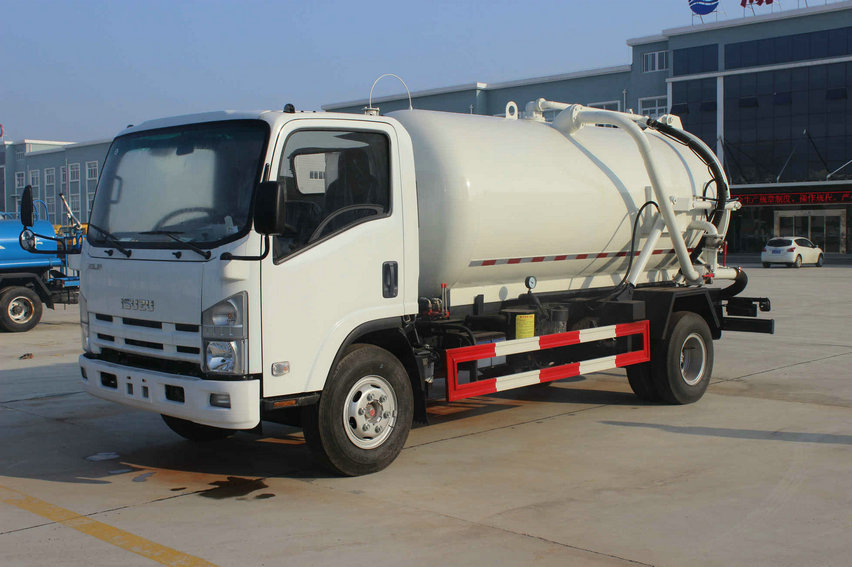

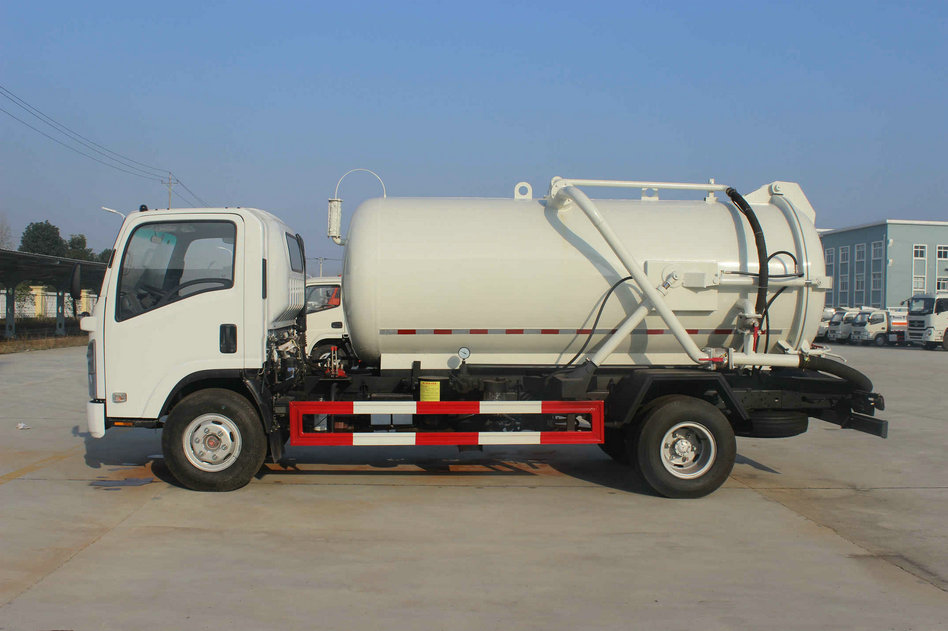

Isuzu ELF sewage suction tanker truck 8000L

Isuzu ELF 700P sewage suction tanker truck 8000L  also named Sewage Vacuum Truck sewer cleaning truck,  sewage tanker, sewer truck,  cesspit emptier,  vacuum truck,  gully emptier,  waste vacuum tanker.

Isuzu ELF sewage suction tanker truck 8000L

Chassis Model /Manufacturer QL1090
Overall Dimension 7000×2400×3000 mm
Kerb Weight 5910 Kg
front overhang/rear overhang 1100/2060
Engine Model/Rated Power 4HK1-TCG40 / 140kw  190Hp
Emission Standard Euro 4
Displacement 5193L
manufacturer Qinling motor Co., Ltd.
driving type 4*2
Steering Type Powering steering
Type & Size of Tyre 8.25-16
Front axle 4T front axle
Rear axle 7T rear axle
Wheel Base 3815mm
Max Speed 95 Km/h
volume of tank 8000L
Material of tank Carbon steel.  Thickness: 6mm
Model of vacuum pump Pump
Absolute working pressure: 400Pa
Academic suction speed: 45L/s

Rotation speed: 500rpm

1. Jet Vacuum Trucks, Sewer Jetting Trucks, 8Tons Sewage Suction Truck include power take off, transmission, vacuum suction fecal pump, water separator, oil and gas separator, multi-way valve, suspender, fecal tank, discharge valve, water tank, fecal level indicator, vacuum pressure meter, pipe system and so on.
2. Jet Vacuum Trucks,Self discharge and dump.
3. The Truck Mounted Vacuum Cleaner Sewage Body can Self Dumper;
4. Fill tank all time ≤10min, long service life, and high working speed, convenienttransportation.
5. Suitable for collecting and transport manure, biogas slurry, mud, oil and other liquid goods.
The Vacuum Sewage Suction Truck, High Pressure Jetting Truck Equipment:
China Brand Vacuum Pump,  Rotation speed: 800-900R/min, Air Flow: 63m3/min, Max. Vacuum: 98%, assemble betweent the wheelbase , drove by PTO.
Vacuum Pump. with Suction Pipe.
