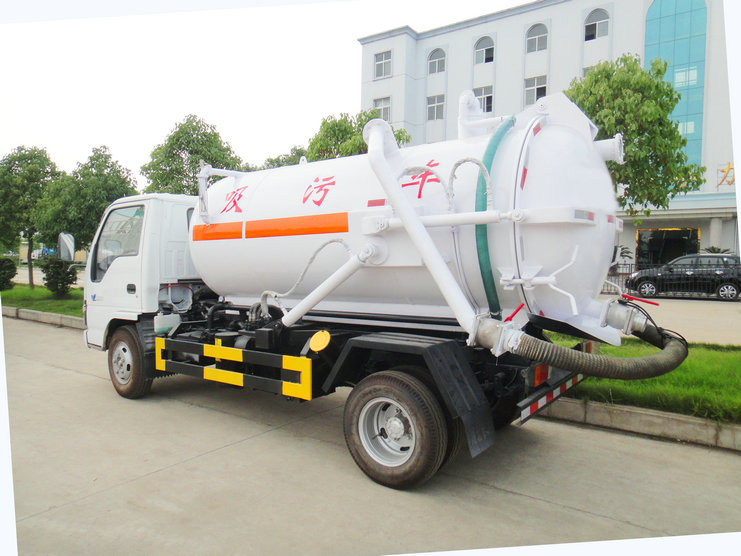

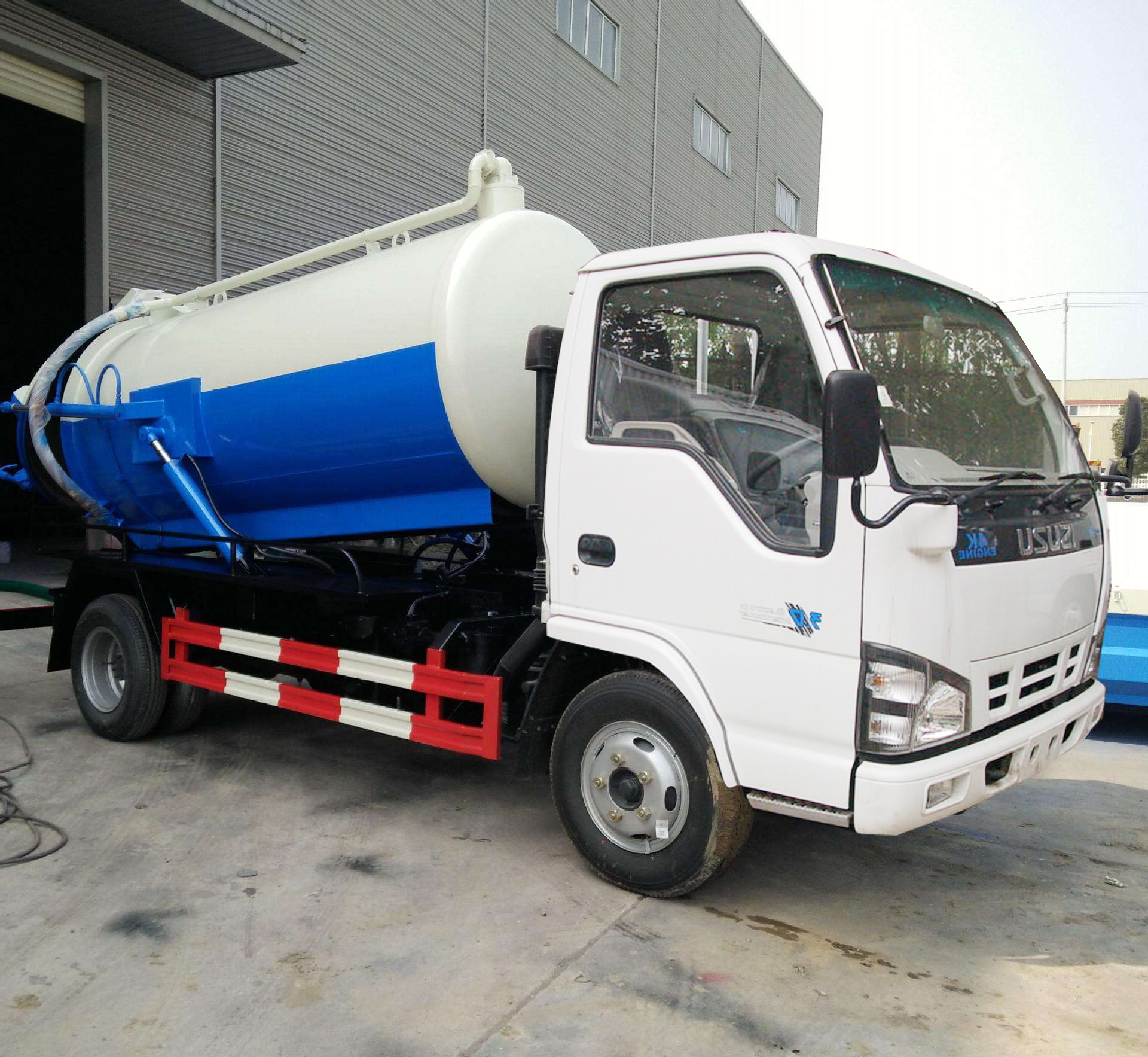

ISUZU 600P cesspool sewage sucking truck 4000L
- ISUZU 600P cesspool sewage sucking truck 4000L
- Product description: ISUZU 600P cesspool sewage sucking truck 4000L
PRODUCT INTRODUCTION
ISUZU 600P cesspool sewage sucking truck 4000L
总质量Total weight(kg) |
7290 |
|
|
额定载质量Loading weight(kg) |
4500 |
外形尺寸 Dimension LxWxH (mm) |
6745×2090×2280 |
整备质量Curb weight(kg) |
2660 |
货厢尺寸 VAN Dimension LxWxH (mm) |
5050×1980×380 |
驾驶室准乘人数 Allowed person |
2 |
载质量利用系数 |
1.44 |
接近角/离去角 Closing departure angle |
24/14 |
前悬/后悬 Front/ rear suspension(mm) |
1015/1915 |
钢板弹簧片数 Leaf spring number |
8/6+5 |
轴距 Wheelbase(mm) |
3815 |
轴数 Axle number |
2 |
轮胎规格 Tire model |
7.00-16 14PR,7.00R16 14PR
|
轮胎数 Tire number |
6 |
后轮距 Rear tread(mm) |
1425 |
前轮距 Front tread(mm) |
1504 |
最高车速 Max speed(km/h) |
100 |
底盘型号 CHASSIS MODEL |
QL1070A1KA1Y 二类 庆铃汽车股份有限公司 ISUZU COMPANY |
||
燃料种类 Fuel type |
柴油 Diesel |
排放标准 Emission standard |
GB17691-2005 (国Ⅳ),GB3847-2005 |
发动机型号 Engine model |
发动机生产企业 Manufacturer |
排量 Displacement(ml) |
功率 Power(kw) |
4KH1-TCG40 |
庆铃五十铃(重庆)发动机有限公司 Isuzu company |
2999 |
88 |
Suction sewage truck configuration |
|
Vacuum pump |
Vacuum pump model XD-63 |
Rotate speed:900r/min |
|
Pumping speed:63m3/h |
|
Time for full suction about 2 minute |
|
Introduction |
Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment |
Time for full suction<5min |
