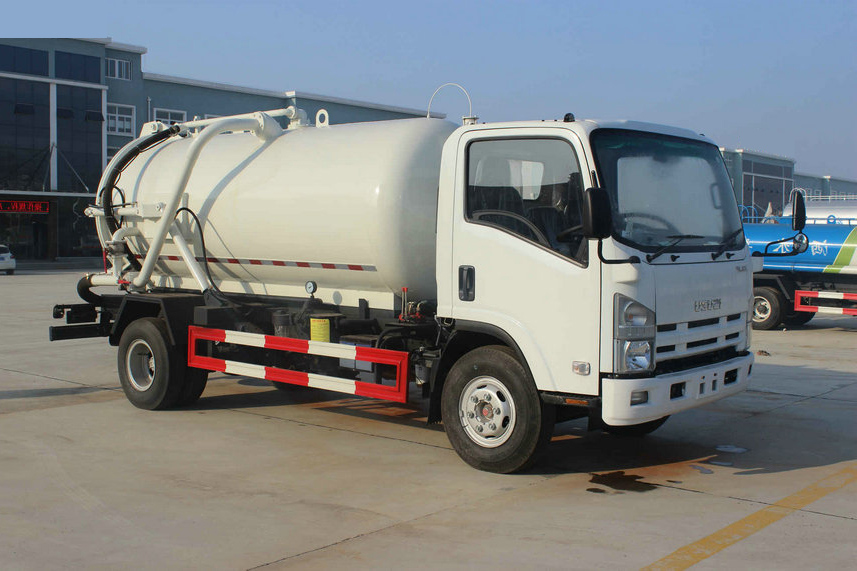

Isuzu 700P cesspool sludge vacuum suction truck

Cubage (T)

6,000L

Vehicle

Overall dimension(LxWxH)mm

6980×2400×2580

G V W(kg)

11070

Payload (kg)

6000

Kerb mass(kg)

4920

Approach/Departure Angle(°)

21/13.

Front/Rear Suspension (mm)

1110/2055.

Fuel Type

Diesel

Fuel consumption(L/100km)

9

Top speed

95

Engine

Model

4HK1-TC

Exhaust/Power(kw)

5193CC / 129KW

Manufacturer

ISUZU Motor Co., Ltd.

Type

4-in-line electric control Common Rail  Diesel Engine

Chassis

Drive type

4×2

Wheelbase (mm)

3815

Tread(front/rear)mm

1680 / 1650.

Front Bridge

4 Ton

Rear Bridge

7 Ton

Transmission

Double spoke wheel, circle ball transmission

Gear box

Five forward gear, one reverse gear, mechanical transmission, flexible wiredraw operate

Clutch

Uniwafer, dry membrane spring clutch

Brake system

Air brake

Cab

0

Number of spring axles(front/rear)

9/14.

Tire specification

9.5R17.5,8.25-20,8.25R20

Air condition

Chose to fix

suction system

suction pump

Single Stage Rotary Oil Seal Vacuum Pump

special parameter

Vertical suction heihgt

≥8

working pressure

8500Pa

rotation speed

500

suction speed

98L/S

power

5.5kw

inlet diatmeter

50mm

filling time

5s

discharge time

4s
