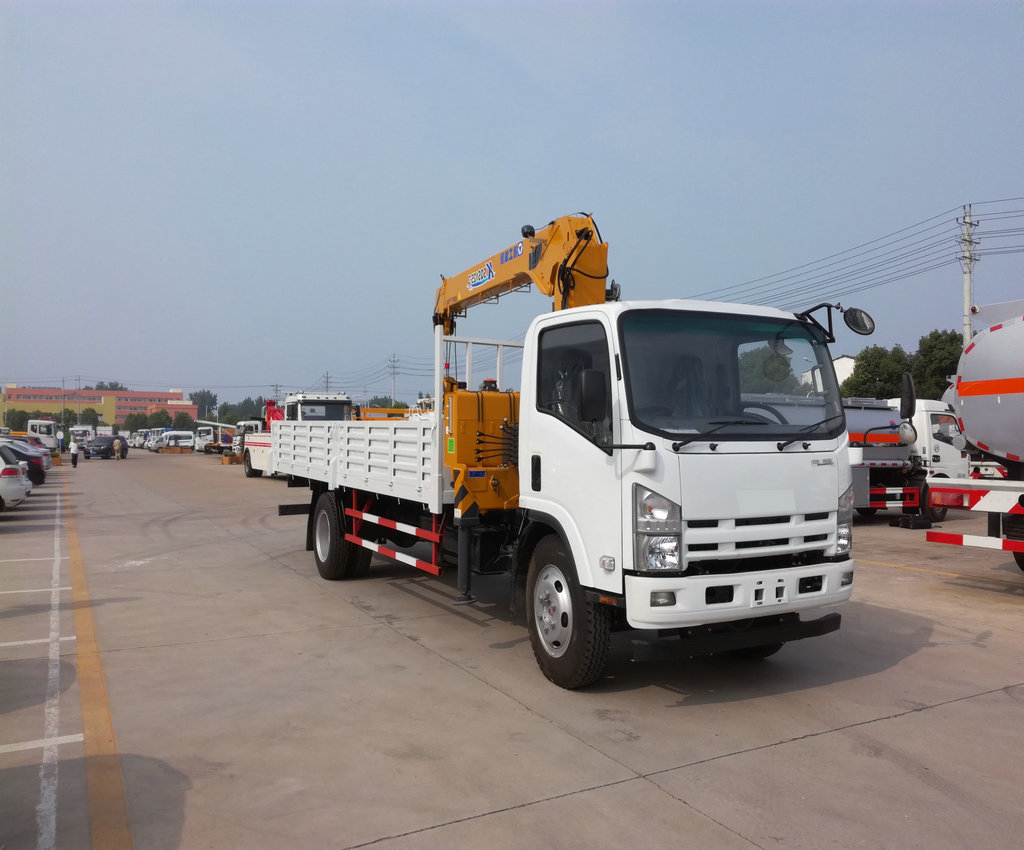

Isuzu 700P truck with crane XCMG 5T
- Isuzu 700P truck with crane XCMG 5T
- XCMG crane
- Product description: Isuzu 700P ELF truck with crane XCMG 5T
PRODUCT INTRODUCTION
|
Chassis Model /Manufacturer |
QL1100TLARY |
|
|||
|
cab |
LHD |
|
|||
|
With air-condition |
|
||||
|
Overall Dimension |
L × W × H |
mm |
7800×2400×3000 |
|
|
|
Total Mass |
Kg |
11285 |
|
||
|
Loading weight |
kg |
5000 |
|
||
|
Kerb Weight |
Kg |
5910 |
|
||
|
front overhang/rear overhang |
1100/2060 |
|
|||
|
Engine |
Model/Rated Power |
4HK1-TC / 129kw, 175Hp |
|
||
|
Emission Standard |
Euro 3 |
|
|||
|
Displacement |
5193L |
|
|||
|
manufacturer |
ISUZU motor Co., Ltd. |
|
|||
|
driving type |
4X2 |
|
|||
|
Steering Type |
Powering steering |
|
|||
|
Type & Size of Tire |
8.25-16 |
|
|||
|
Tread( front/rear) |
1680/1650 |
|
|||
|
Front axle |
4T front axle |
|
|||
|
Rear axle |
7T rear axle |
|
|||
|
Wheel Base |
mm |
4475mm |
|||
|
Number of leaf spring of suspension |
piece |
8/10+6 |
|||
|
cargo body size |
mm |
5500*2300*500 |
|||
|
Max Speed |
Km/h |
95 |
|||
Model of Crane
SQ5SK2Q
Max. Lifting capacity
5000 Kg
Max. Lifting height
10.5m
Max Lifting Moment
12.5 T.m
working radius
8.7 m/kg
Recommend Power
18Kw
Max. oil flow of hydraulic system
32 L/min
Max pressure of hydraulic system
20Mpa
oil tank capacity
90 L
crane weight
2074kg
installation space
900 Mm
rotation angle
All rotation,360°
|
Working radius (m) |
2.1 |
4.44 |
6.2 |
8.01 |
|
Lifting capacity (kg) |
5000 |
2400 |
1600 |
1050 |
