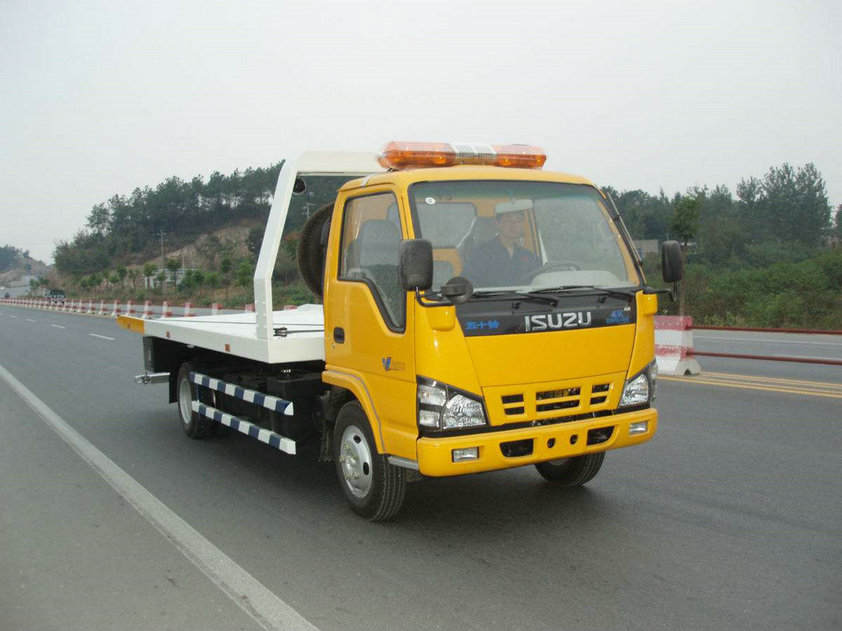

Isuzu elf 5T wrecker truck rescue truck 5tons
- Isuzu elf 5T wrecker truck rescue truck 5tons
- Isuzu elf 5T wrecker truck rescue truck 5tons
- Isuzu elf 5T wrecker truck rescue truck 5tons
- Isuzu elf 5T wrecker truck rescue truck 5tons
- Product description: Isuzu elf 5T wrecker truck rescue truck 5tons
PRODUCT INTRODUCTION
ISUZU Wrecker 5000 Kg Max Designed, Towing Weight 5 Ton Rated Towing Weight
Items |
Unit |
Value |
|
Boom Structure |
Rated towing weight |
kg |
5000 |
Rated lifting weight |
kg |
1500 |
|
Max. Lifting weight of full extension boom |
kg |
800 |
|
Max. Designed towing weight |
kg |
7000 |
|
Effective length of boom |
mm |
1260 |
|
Extension traveling of boom |
mm |
330 |
|
Folding angle of boom |
° |
95 |
|
Under lift Structure |
Rated hanging weight |
kg |
1500 |
The height from hook to the ground |
mm |
2070 |
|
Numbers of winch |
piece |
1 |
|
Rated pulling power of winch |
kg |
4000 |
|
Diameter of steel cable |
mm |
10 |
|
Length of steel cable |
m |
25 |
|
Min. Speed of steel cable |
m/min |
4.5 |
|
Rotation angle |
° |
14 |
|
Vehicle Parameters |
External dimension |
mm |
5500×1910×2470 |
Chassis model |
|
NKR77LLPACJAY |
|
Drive |
|
4×2 |
|
Axle base |
mm |
3360 |
|
The whole weight of empty load |
kg |
3370 |
|
Load of front axle of empty load |
kg |
1620 |
|
Load of rear axle of empty load |
kg |
1750 |
|
The whole weight of full load |
kg |
5000 |
|
Load of front axle of full load |
kg |
1720 |
|
Load of rear axle of full load |
kg |
3280 |
|
Wheel base (front/rear axle) |
mm |
1504/1425 |
|
Front suspension |
mm |
1015 |
|
Rear suspension |
mm |
790 |
|
Approach angle |
º |
24 |
|
Departure angle |
º |
15 |
|
Max. Grade ability |
% |
≥30 |
|
Min. Ground clearance |
mm |
190 |
|
Min. Turning diameter |
m |
≤15.2 |
|
Max. Speed |
km/h |
100 |
|
Engine model |
- |
4KH1-TC |
|
Engine emission |
ml |
2999 |
|
Rated power |
kw/r/min |
96/3400 |
|
Torque |
n·m/r/min |
280/1700 |
|
Standard of emission |
|
EURO 4 |
|
Tire size |
|
7.00-16 (option7.50-15,7.50R15,7.00R16) |
|
Persons |
|
2 |
Standard Equipments
ISUZU NKR
Main boom structure assembly
Vice boom assembly
Hanging hook assembly
Control structure assembly
Winch assembly ( include winch clutch, impaction device )
Steel body assembly
Tool box assembly
Light stands assembly
Alarm device
Hydraulic system
Hydraulic system over voltage protection device
Electric system
PTO Warner
Combination lamps
Steel wire rope ( including hook ) ( 25 m / pcs )
Standard spare tire
L wheel lift
Bind belt
