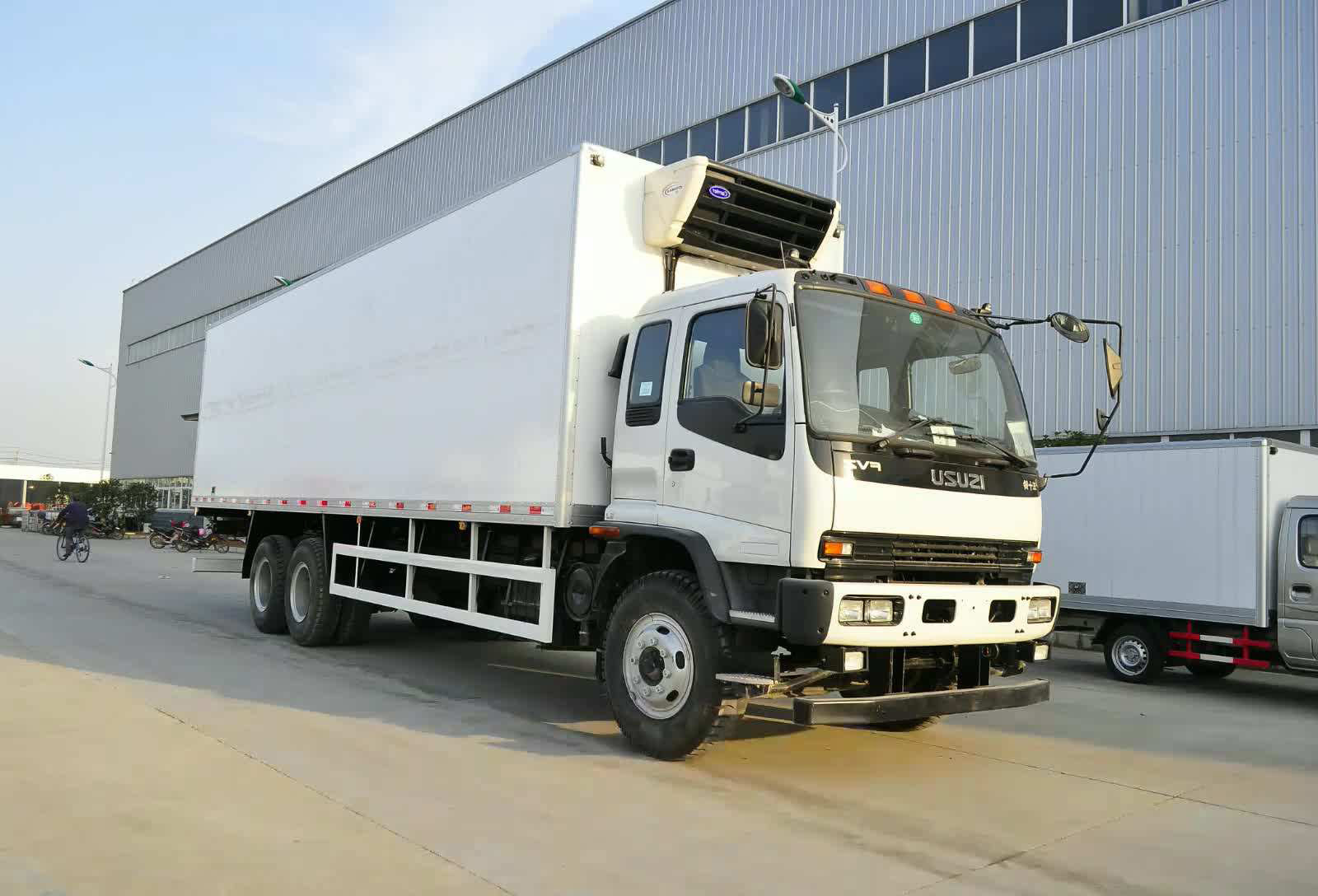

ISUZU FVZ freezer truck freeze truck
- ISUZU FVZ freezer truck freeze truck
- Product description: ISUZU FVZ freezer truck freeze truck
PRODUCT INTRODUCTION
ISUZU FVZ freezer truck freeze truck
Engine Engine Manufacturer Displacement (ml) Power (kw)
6HK1-TCSG40 Qingling motor co., LTD 7790 206
Engine brand : ISUZU Fuel type: Diesel (mm)
Dimensions: 11785×2470,2530×3880(mm) Compartment Size : × × (mm)
The total mass : 25000(Kg) Payload: 0
Curb weight: 11200(Kg) Rated Quality: 13605(Kg)
Quality Trailer : (kg) Semitrailer saddle :
Rated capacity : ( People ) Cab seats : 3( People )
Approach / departure angle : 26/7(°) Front / rear overhang : 1335/3450(mm)
Axle load: 7000/18000 Wheelbase: 5700+1300(mm)
Number of axes: 2 Maximum speed: 90(km/h)
Fuel consumption: Spring: 9/10
Number of tires : 10 Tire Size: 11.00-20 18PR
Front track: 1960/1855/1855 Rear track: 1855/1855
Chassis Emission standard: GB17691-2005, GB3847-2005 National
Transmission Type: Steering wheel According to the standard :
Engine Engine Manufacturer Displacement (ml) Power (kw)
6HK1-TCSG40 Qingling motor co., LTD 7790 206
Engine brand : ISUZU Fuel type: Diesel (mm)
Dimensions: 11785×2470,2530×3880(mm) Compartment Size : × × (mm)
The total mass : 25000(Kg) Payload: 0
Curb weight: 11200(Kg) Rated Quality: 13605(Kg)
Quality Trailer : (kg) Semitrailer saddle :
Rated capacity : ( People ) Cab seats : 3( People )
Approach / departure angle : 26/7(°) Front / rear overhang : 1335/3450(mm)
Axle load: 7000/18000 Wheelbase: 5700+1300(mm)
Number of axes: 2 Maximum speed: 90(km/h)
Fuel consumption: Spring: 9/10
Number of tires : 10 Tire Size: 11.00-20 18PR
Front track: 1960/1855/1855 Rear track: 1855/1855
Chassis Emission standard: GB17691-2005, GB3847-2005 National
Transmission Type: Steering wheel According to the standard :
