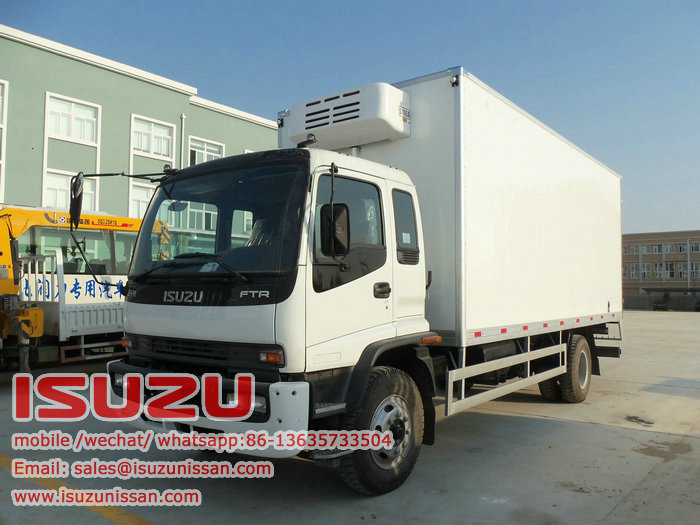

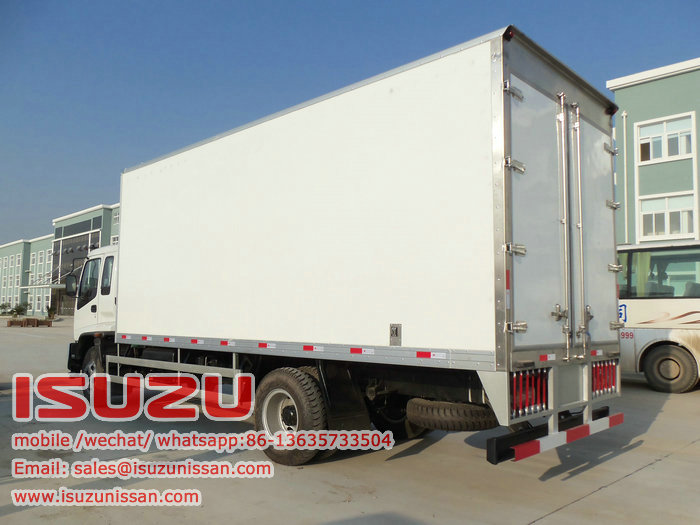

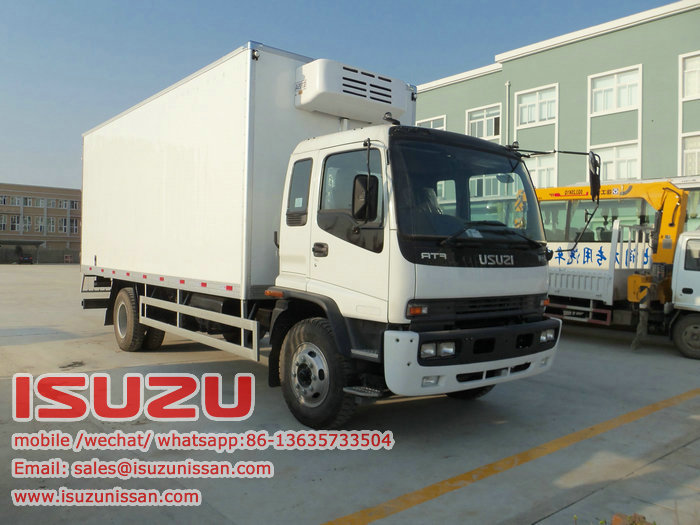

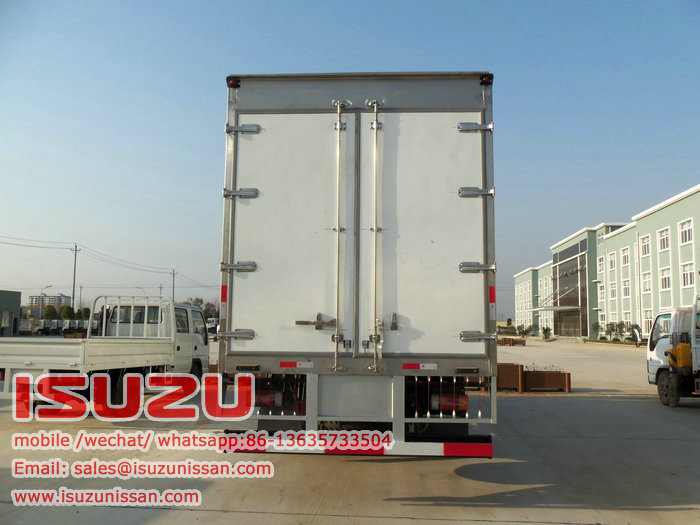

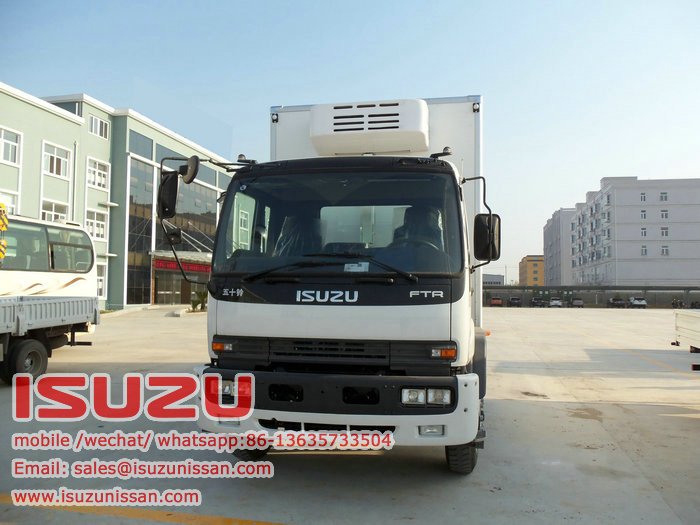

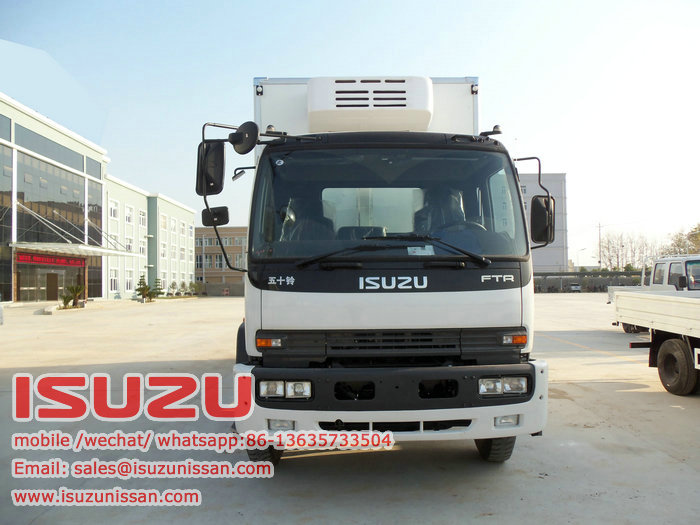

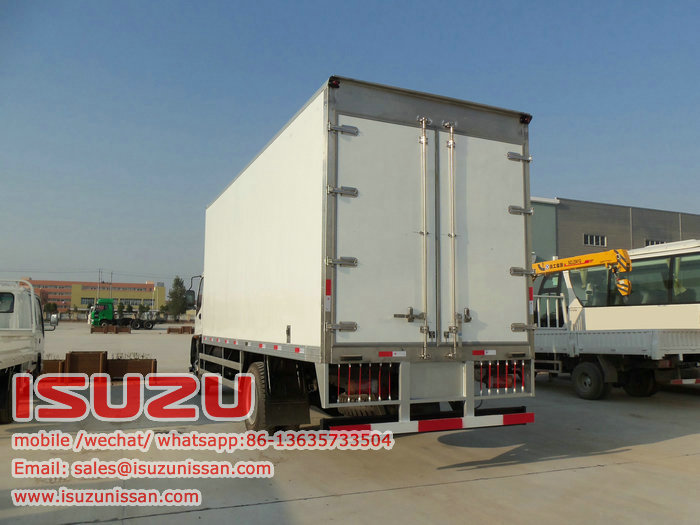

ISUZU FTR refrigerator wagon

PRODUCT INTRODUCTION

Chassis Model /Manufacturer			ISUZU QL11409
cab			Two doors , turn over cabin, power steering
Overall Dimension	L×W×H	mm	9000×2470×3935
Total Mass		Kg	14000
Rated Payload		Kg	6750
Kerb Weight		Kg	7055
Approach / departure angel			26/16.
Front/rear suspension		mm	1335/2665
Fuel type			Diesel
Fuel consumption		L/100km	18
Ground clearance		mm	248
Engine	Model/Rated Power		4HK1-TCG40
	Displacement/ power		5200ML /190hp
	Emission Standard		Euro 4
	manufacturer		ISUZU motor Co., Ltd.
	Diesel 4-stroke, 6-cylnder in line with water cooling, turbo charging
driving type			4*2
Wheel base			5000mm
Front/rear tread			1960/1855
Front axle			6.3T front axle
Rear axle			13T rear axle
Steering			Power steering
Cultch			Single dry diaphragm spring cultch
Brake system			Air brake, exhaust brake, air cut brake
Gear box			ISUZU six forwards
Number of leaf spring of suspension			9/14.
Type & Size ofTyre			9.00-20
Max Speed(Km/h)			90
Refrigerated body size(mm)			6415×2250×2370
