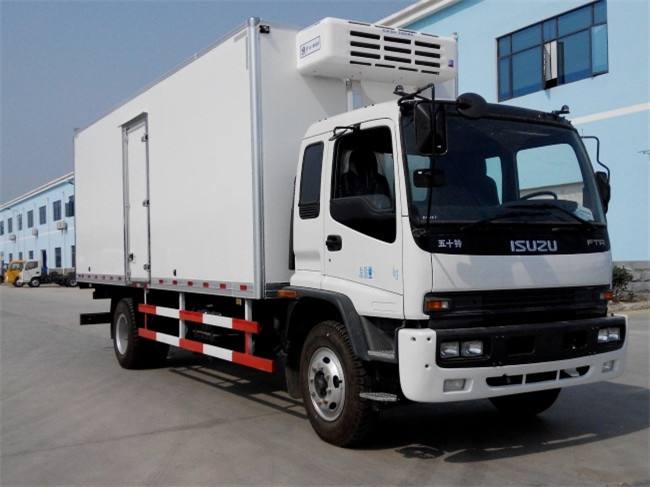

ISUZU FTR cooling chill truck

Chassis Model /Manufacturer

ISUZU QL11409

cab

Two doors , turn over cabin, power steering

Overall Dimension

L×W×H

mm

9000×2470×3935

Total Mass

Kg

14000

Rated Payload

Kg

6750

Kerb Weight

Kg

7055

Approach / departure angel

26/16.

Front/rear suspension

mm

1335/2665

Fuel type

Diesel

Fuel consumption

L/100km

18

Ground clearance

mm

248

Engine

Model/Rated Power

4HK1-TCG40

Displacement/ power

5200ML /190hp

Emission Standard

Euro 4

manufacturer

ISUZU motor Co., Ltd.

Diesel 4-stroke, 6-cylnder in line with water cooling, turbo charging

driving type

4*2

Wheel base

5000mm

Front/rear tread

1960/1855

Front axle

6.3T front axle

Rear axle

13T rear axle

Steering

Power steering

Cultch

Single dry diaphragm spring cultch

Brake system

Air brake, exhaust brake, air cut brake

Gear box

ISUZU six forwards

Number of leaf spring of suspension

9/14.

Type & Size ofTyre

9.00-20

Max Speed(Km/h)

90

Refrigerated body size(mm)

6415×2250×2370
