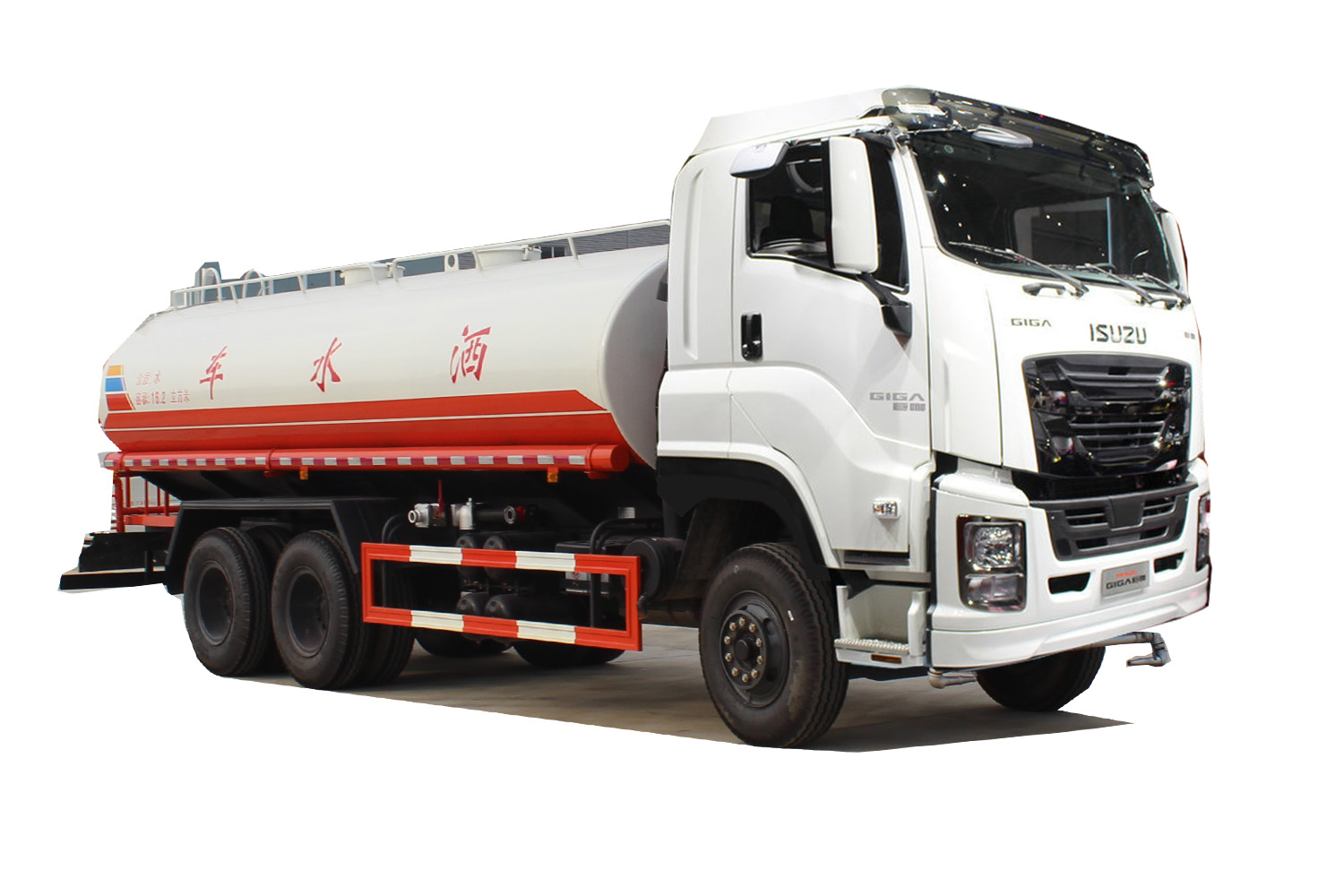

Isuzu giga water bowser truck water tanker truck 20Tons

Isuzu giga water tanker truck 20000L 20tons

Spraying water 16M

Jetting water 20M

Sucking water from river , lake, pool etc

6X4

QL5330

Overall dimension (mm)

9500x2500x3490

weight

gross weight

kg

25000

Rated payload

kg

20000

Curb weight

kg

13250

Axle base

mm

3985+1370

engine

Model

6WG1-TCG

Power

460hp

338kw

Torque

N.m/rpm

2256/1800

fuel

diesel

Max. designed speed

km/h

90

passengers

3

Tire specs

Standard configuration

315/80R22.5

Optional configuration

A/C,  hydraulic assist, central lock, electric windows, ABS,

Euro 5, Fast transmission 12 speeds

Tank capacity 19000L,  tank material carbon steel 5mm, equip with water pump 60/90,  flow 1000L/min,  axle speed 1180RPM, suction depth 6.5m,  2x high pressure water stream sprayer at front, 2x water sprayer at rear, 2x side sprayer, working plat form, high pressure water stream canon, fire fighting hose connect, 2x3M water hose
