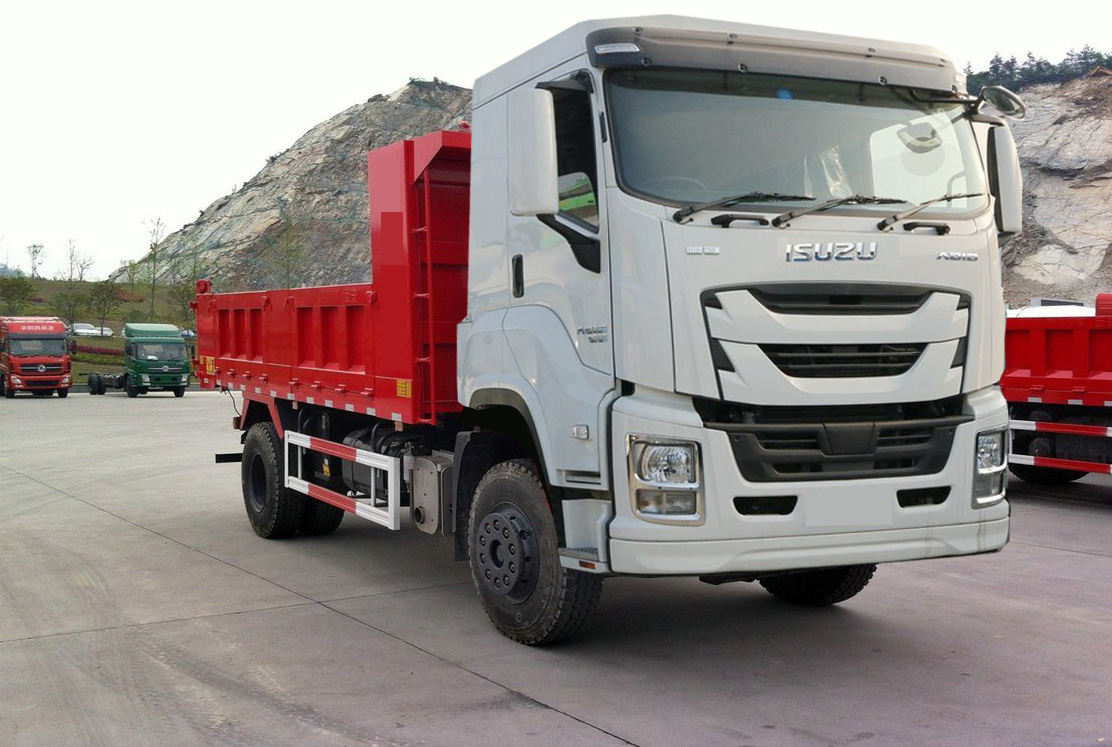

Isuzu giga dump truck tipper truck 10tons

Overall dimension (mm)

9500x2500x3200

Dump body size  (mm)

4800x2200x800

Bottom board 6mm, side board 4mm

Driving mode

4X2

Total mass (kg)

18000

Wheelbase(mm)

5600

Engine Model

6UZ1-TCG50

EngineOutput(Kw)

279

380hp

Engine Max. torque kgf.m(N.m)

180(1765)

Load capacity

10 tons

Frame dimension

950-850×285t=7

Fuel tank capacity

400L

Front axle

Abs 7tons

Cab

standard roof

Suspension

Spring suspension

Driver's seats

Air/Standard

Rear axle ratios

3.90/4.555/3.7/3.36/3.08/2.85

Tyre

315/80R22.5

Other features

ABS, Safety belt, Central lock, Electric window, Air condition, VDR, air guide sleeve, Wing guide sleeve, Wide bumper, Reading lamp (USB) ,Aluminum alloy storage tank, Power supply switch, Pedals light ,Curtains. Protective screening for sleeping beds, Safety belt for sleeping beds, Leather seats
