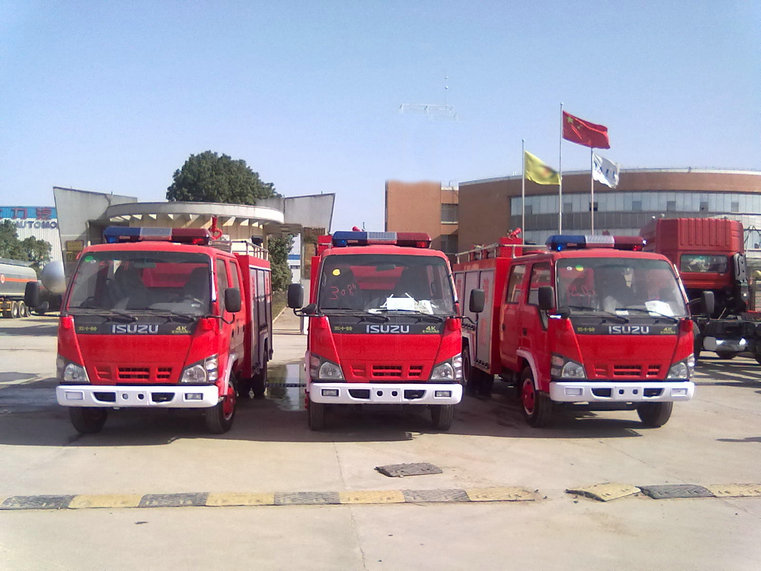

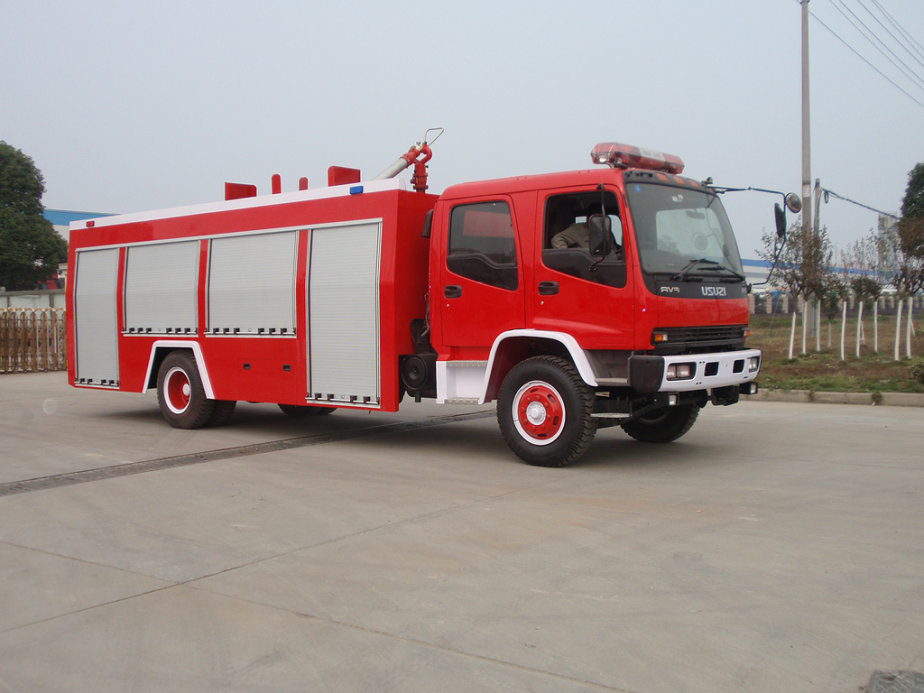

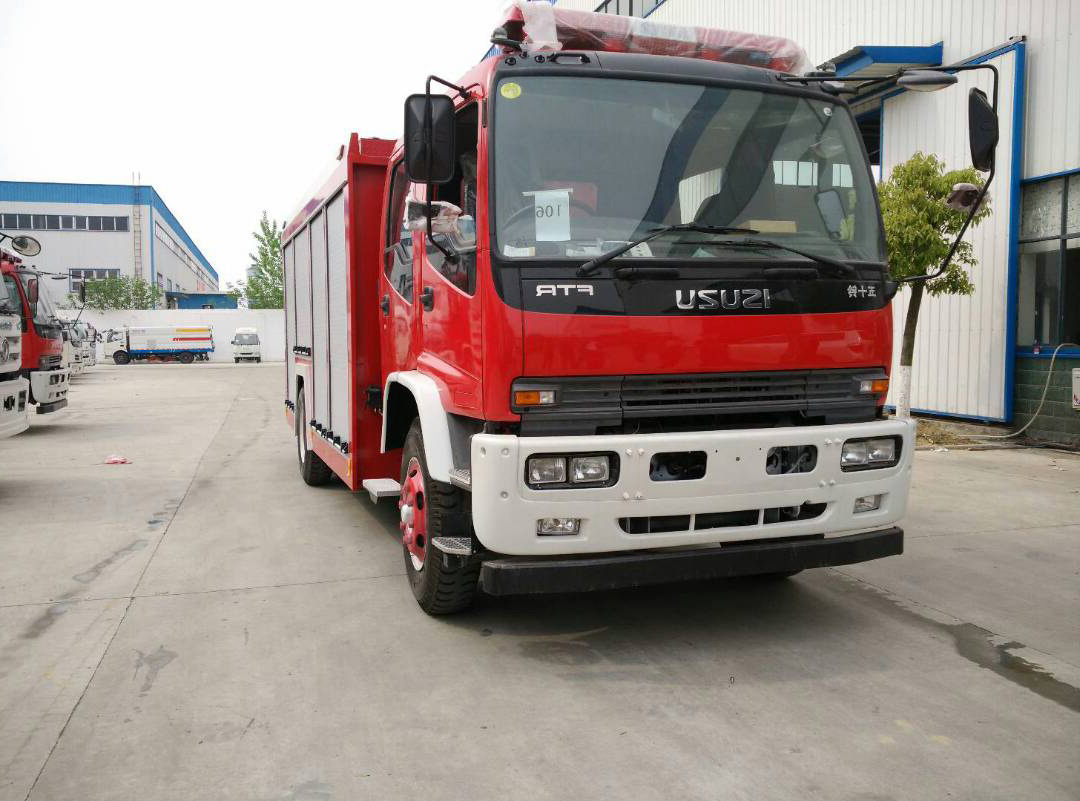

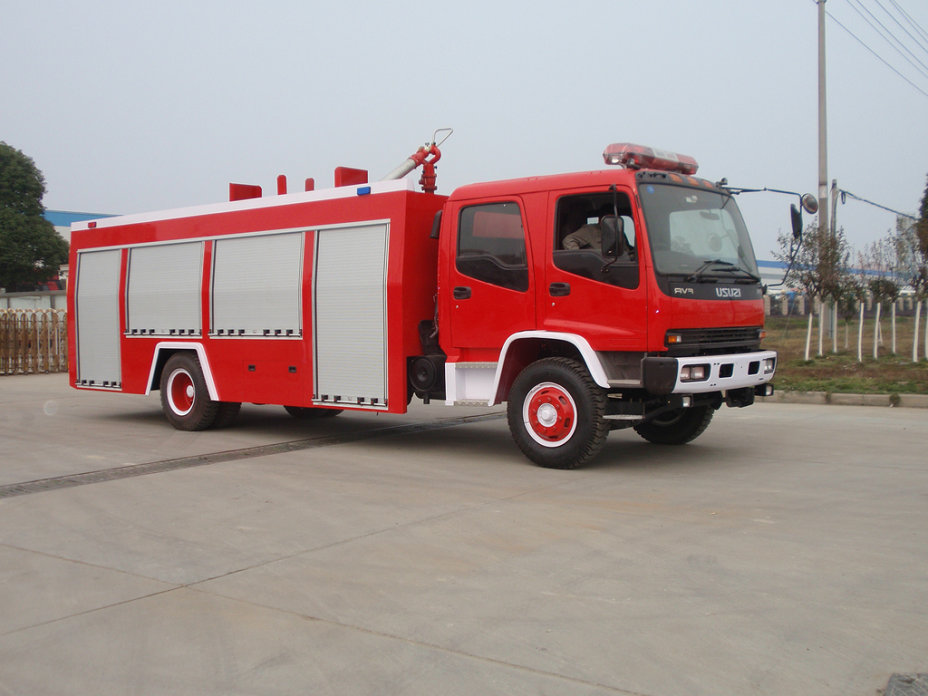

Isuzu ftr fire engine fire truck fire fighter truck 5000L

Overall dimensions

7555x2465x2780mm

Wheel base

4500mm

Front/rear wheel track

1960/1855mm

Front/rear suspension

1335/1720mm

Approach/departure angle

26/16°

Maximum speed

95km/h

Chassis Manufacturer

QingLing Motors (Group) Co., Ltd.

Cab

Configuration

FTR, a row and a half cab(with sleeping berth),allowable 3 passengers,air conditioner,central lock,electric windows,USB audio,cab capacious and reversible

Color

White,other color is optional

Engine

Model

4HK1-TCG

Emission

Euro 5

Type

4 cylinders, 4 valve, 4-stroke,in-line,common rail,precision electronic control,multistage injection,optimal combustion,exhaust gas recirculation, diesel engine.

Rated power

205hp

Displacement

5193ml

Manufacturer

Isuzu (ChongQing) Engine Co., Ltd.

Tire

Size

10.00-20 16PR nylon tire

Number

6+1 nos

Frame

258X85(10+4)mm

Front axle

7 tons

Rear axle

13 tons

Drive form

4X2

Suspension

Multi leaf springs

Rated voltage

24V,DC

Transmissions

Isuzu MLD six speed transmission,6 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive
