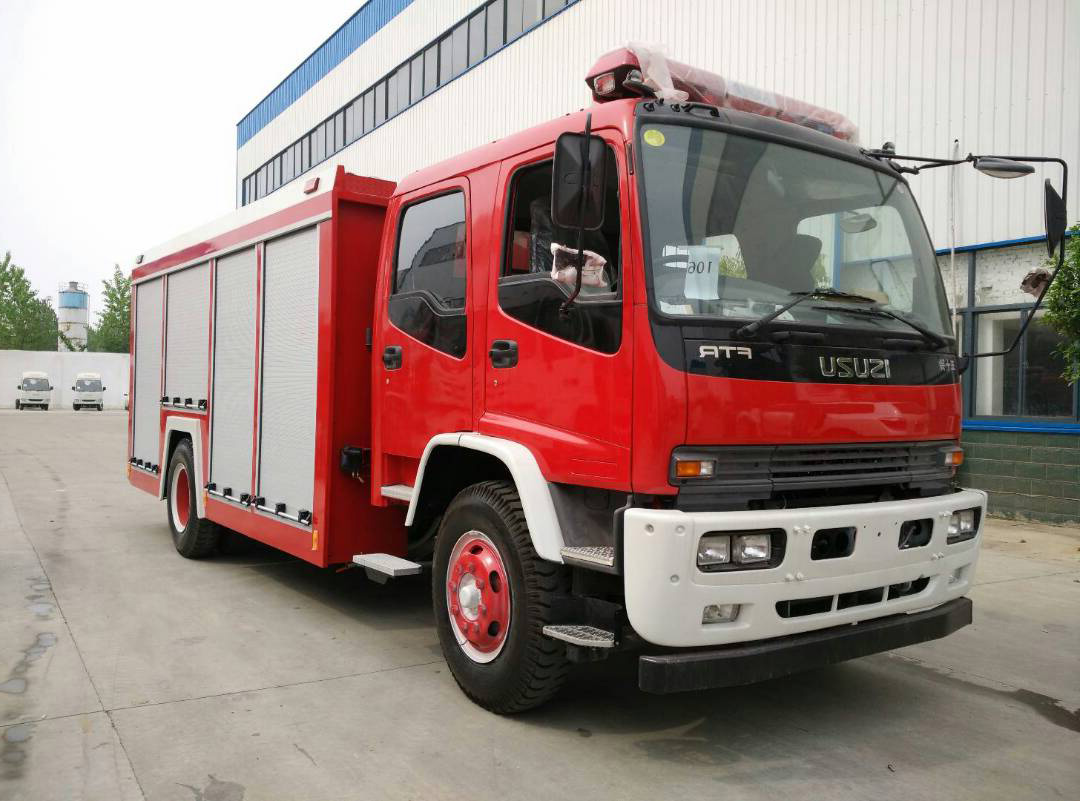

Isuzu ftr fire engine fire fighting truck 5000L

PRODUCT INTRODUCTION

Overall dimensions		7555x2465x2780mm	Wheel base	4500mm
Front/rear wheel track		1960/1855mm	Front/rear suspension	1335/1720mm
Approach/departure angle		26/16°	Maximum speed	95km/h
Chassis Manufacturer		QingLing Motors (Group) Co., Ltd.
Cab	Configuration	FTR, a row and a half cab(with sleeping berth),allowable 3 passengers,air conditioner,central lock,electric windows,USB audio,cab capacious and reversible
	Color	White,other color is optional
Engine	Model	4HK1-TCG
	Emission	Euro 5
	Type	4 cylinders, 4 valve, 4-stroke,in-line,common rail,precision electronic control,multistage injection,optimal combustion,exhaust gas recirculation, diesel engine.
	Rated power	205hp
	Displacement	5193ml
	Manufacturer	Isuzu (ChongQing) Engine Co., Ltd.
Tire	Size	10.00-20 16PR nylon tire
	Number	6+1 nos
Frame	258X85(10+4)mm
Front axle	7 tons
Rear axle	13 tons
Drive form	4X2
Suspension	Multi leaf springs
Rated voltage	24V,DC
Transmissions	Isuzu MLD six speed transmission,6 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
