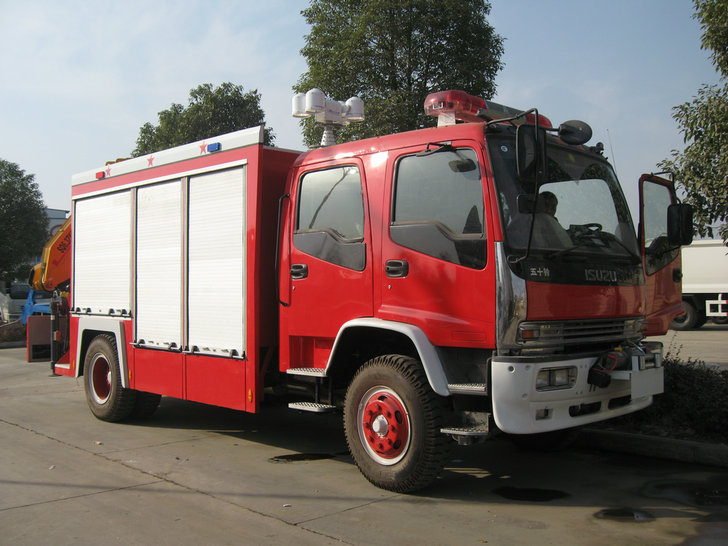

Isuzu fire rescue truck with XCMG knuckle crane

PRODUCT INTRODUCTION

Item	Specification	Unit
Maximum lifting quality	6300	Kg
Maximum lifting moment	13.23	T.M
Recommended power	18	KW
Max Oil Flow of Hydraulic System	25	L/min
Rated pressure of hydraulic system	28	Mpa
Oil tank capacity	90	L
Rotary angle	360°All Rotation	°

Working range chart(m）	2.10	4.44	6.20	8.01
Lifting weight（kg）	6300	2700	1700	1200

1. The advanced research and development and analysis means to ensure that the design reliability

2. Four bar linkage, lifting ability stronger

3. Flange telescopic boom connection technology

4. Independent research and development of slewing mechanism, with a strong driving force, can meet

more condition need

5. Hexagon suspension arm technology, to neutral good, cross section bending ability

6. Unique floating three bridge structure design, effectively reduce the vehicle chassis girder to

inherit the additional stress
