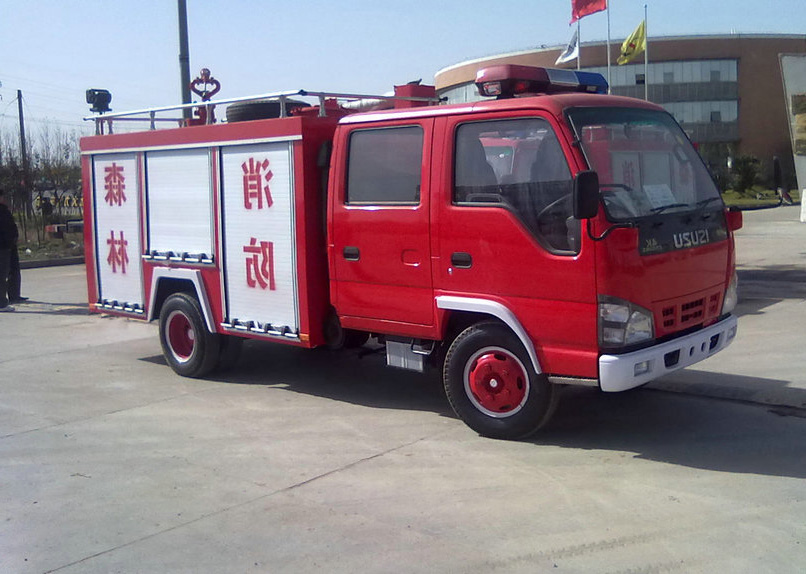

Isuzu 600P foam tank pumper fire truck

Technical parameter of fire fighting body

Fire fighting pump and pipeline system

Model of Fire fighting pump: CB10/40

Pressure: 1.0Mpa

Flux: 50L/s

Suction depth: ≥7m

Suction time: ≤35s

Installing type: central or rear

Pipeline system:

Suction pipeline: there is Ø125mmwater inlet, can sop natural water source and sop the water from liquid tanker.

Water outlet pipeline: there is one middle pressure water outlet on every side, and gun pipeline with dia.≥80mmon the top of tanker.

Discharge remaining water system: to protect pump and all ball valves,

Fire fighting

monitor

消防炮

型号：PP型消防炮

射程：水≥50m，泡沫≥45m

压力：1.0MPa

Model: PP

Range: water≥50m  foam≥45m

Pressure: 1.0Mpa.

PTO

采用夹心式取力器，飞溅式润滑，能满足边行驶边灭火功能。

Sandwich PTO, splashing-type lubricate, can put out fire when driving.

Material of carriage

整车车厢采用优质钢材和花纹铝板制造。

Carriage is made of high quality carbon steel and Aluminum embossed sheet

Pump room

Central type, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch.

泵房：中置，设置水泵系统及管路，结构紧凑、合理，各种仪表、操纵开关设置方便

Equipment box

Equipment box: at the back of carriage, there is two-layer clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box.

Structure: whole frame is welded to ensure intension and rigidity.

Material: frame is high quality steel, inner plague is aluminum embossed sheet, surface is anodic processed.

器材箱：位于车厢后部，内设二层隔板，可存放各类器材。器材箱后部设置有供安全上下的安全梯。

结构：整体框架焊接结构，保证其强度和刚度。

材料：骨架为优质钢材，内饰板为花纹铝板，表面经阳极化处理。
