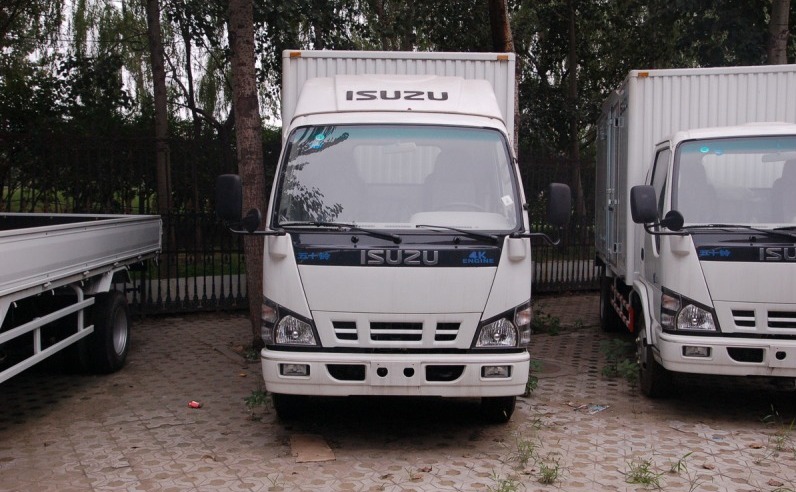

Isuzu ELF light duty cargo van truck

Name

Van truck

Total weight(kg)

7130

Loading weight(kg)

3990

Dimension

LxWxH (mm)

6790×2110×2900

Curb weight(kg)

3180

VAN Dimension

LxWxH (mm)

5050×2050×1810

Allowed person

2

1.44

/

Closing departure angle

24/14

/

Front/ rear suspension(mm)

1015/1915

Leaf spring number

8/6+5

Wheelbase(mm)

3815

Axle number

2

Tire model

7.00-16 14PR,7.00R16 14PR

Tire number

6

Rear tread(mm)

1425

Front tread(mm)

1504

Max speed(km/h)

100

CHASSIS MODEL

QL1070A1KA1Y ISUZU COMPANY

Fuel type

Diesel

Emission standard

GB17691-2005

(Ⅳ),GB3847-2005

Engine model

Manufacturer

Displacement(ml)

Power(kw)

4KH1-TCG40

()

Isuzu company

2999

88
