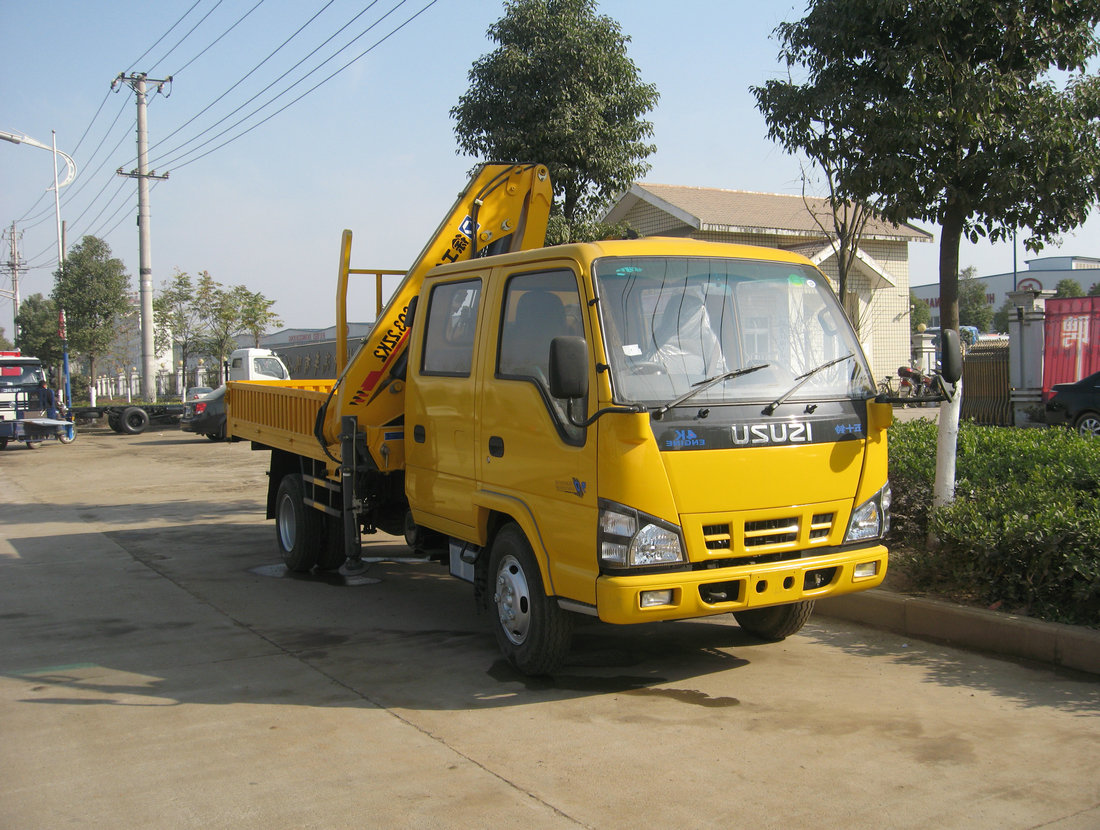

Isuzu 600p truck mounted knuckle crane XCMG

Main Technical Parameter
Product Name ISUZU Crane Truck Crane Overall Dimension(mm) 6745×2386×3120
Carriage inner size (L*W*H)(mm) 3160×1790×380 Curb Weight (kg) Approx 4060
Wheelbase (mm) 3815 Number of Axles 2
Appr/Dep Angle(º) 24/14 Max Speed(km/h) 80
Cab  Allowed Persons 2+3 Cab type Two row,
Chassis Technical Parameter
Chassis Manufacturer ISUZU Motor Co., Ltd
Gear Box ISUZU 5 speed forward and 1 reverse Transmission type Manual
Steering Type LHD Brake System Oil brake
Leaf Spring No. 8/6+5 Front/Rear tread(mm) 1504/1425
Drive Type 4x 2 Tire Spec. 7.00-16,7.00-R16
Engine Technical Parameter
Engine Model 4KH1-TC Engine Brand ISUZU Motor Co., Ltd
Fuel Type Diesel Emission Standard Euro 3
Displacement ( ml ) 2999 Power (KW) 96(130hp)


Crane specifications

Model SQ3.2ZK2 Unit
Max Lifting Moment 6.72 t.m
Max Lifting Capacity 3200 kg
Recommend Power Needed At Recommend Oil Flow 14 kw
Max Oil Flow of Hydraulic System 25 L/min
Rated Pressure Of Hydraulic System 22 MPa
Oil Tank Capacity 60 L
Rotation Angle 370 Degree
Crane Weight 1200 kg
Installation Space 850 mm

SQ3.2ZK2 Lifting capability diagram
Working radius (m) 2.1 4.15 5.8 7.3
Lifting capacity (kg) 3200 1300 950 650
