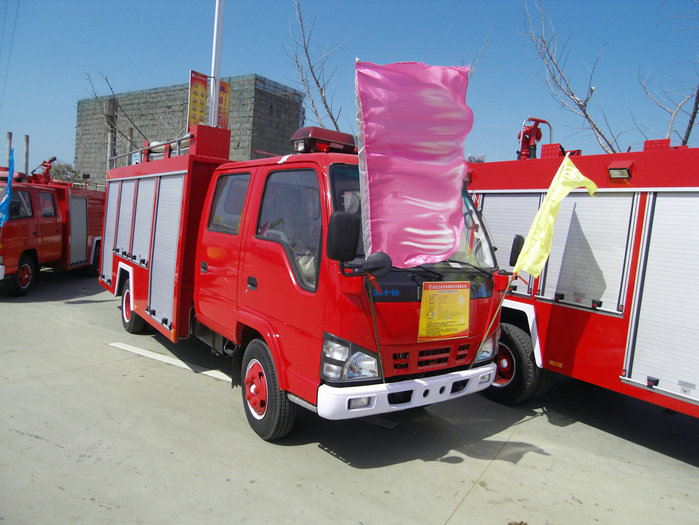

Isuzu 600p foam tanker fire truck fire engine 3000L

PRODUCT INTRODUCTION

Isuzu fire truck		Left hand drive
Chassis model		NKR77PLLWCJAY
External dimensions (L×W×H)	(mm)	6730×1980×2785
Whole equipped car weight	(kg)	4140
Max. total weight	(kg)	6515
Shaft distance	(mm)	3815
Closing angle/departing angle	(°)	24/13
Front suspension / Rear suspension	(mm)	1015/1900
Front tread / Rear tread	(mm)	1504 / 1425
Steering type		Hydraulic assist
Axle number		2
Leaf spring number		6/6+5
Engine model		4KH1-TC
Fuel		Diesel
Max power	(kw/hp)	96 / 95
Exhaust volume	(ml)	2999
Emission standard		Euro 3
Tire model		7.50-15
Tire number		6
Top speed	(km/h)	60
Water tank volume	(L)	4000
Tank material		Carbon steel

Set of fire technical equipment

No.	Name	Specification	Quantity	Remark
1	吸水管suction pipe	Ø125×2000mm	4PCS
2	消防水带fire fighting belt	Ø65×20000mm	8
3	消防水带fire fighting belt	Ø80×20000mm	4
4	滤水器water purifier	FJF125	1PC
5	二分水器wye	FF65	1PC
6	异径接口ncreaser	KJ65/80	2PCS
7	水带挂钩belt pothook	FG600	4PCS
8	水带包布belt cloth	FP470	4PCS
9	地上消火栓扳手 above ground hydrant wrench	FB450	1PC
10	下消火栓扳手 underground hydrant wrench	FBX800	1PC
11	吸水管扳手suction wrench	FS100/125	2PCS
12	直流开关水枪 straight stream shut-off nozzle	QZG19	1PC
13	直流水枪straight stream nozzle	QZ19	1PC
14	直流开花水枪 straight stream multi-jet squirt	QZH19	1PC
15	消防腰斧fire fighting axe	GF285	1PC
16	铁铤tool	GT1	1PC
17	灭火器fire extinguisher	Factory standard	1set
