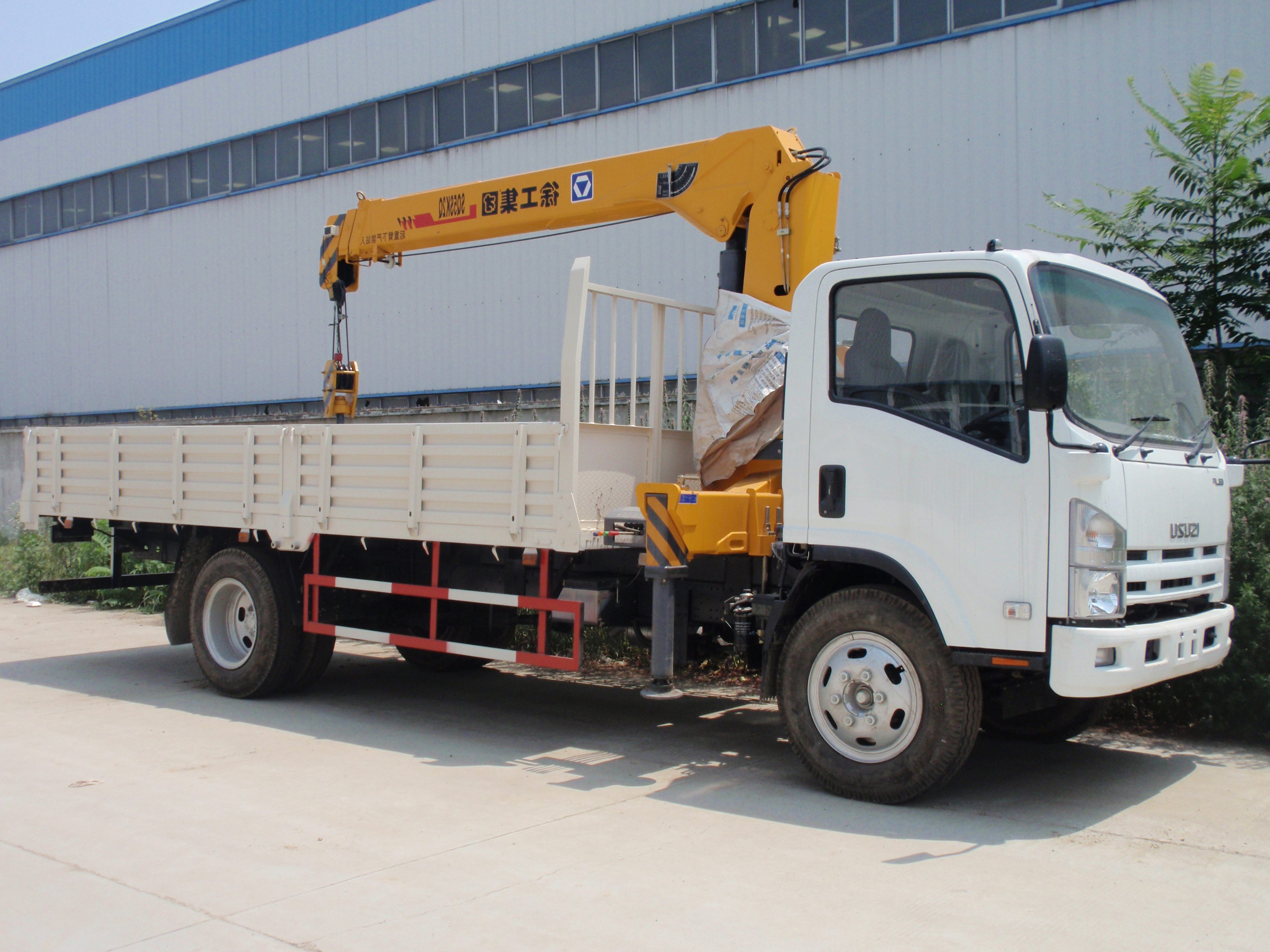

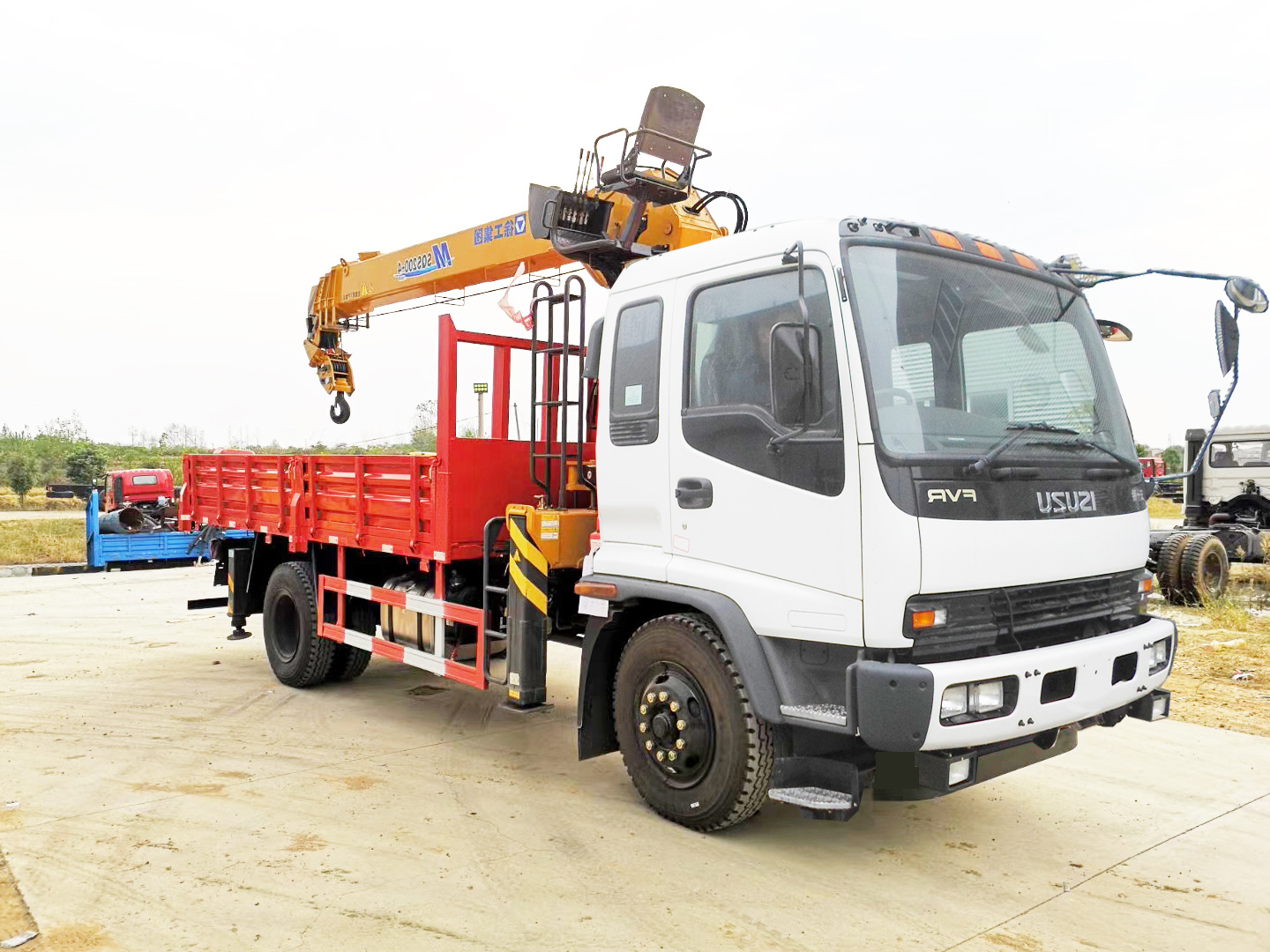

ISUZU FVR lorry with crane truck mounted crane 8Tons XCMG

ISUZU FVR lorry with crane truck mounted crane 8Tons XCMG
ISUZU FVR lorry with crane truck mounted crane 8Tons XCMG
ISUZU FVR lorry with crane truck mounted crane 8Tons XCMG
ISUZU FVR lorry with crane truck mounted crane 8Tons XCMG
Product description: ISUZU FVR lorry with crane truck mounted crane 8Tons XCMG

PRODUCT INTRODUCTION

vehicle model			QL1180
Container dimension LxWxH mm			48002300400
weight	gross weight	kg	18000
	Rated payload	kg	13000
	Curb weight	kg	11200
Axle base		mm	4500
Whole truck Overall Dimension	Length	mm	9170
	Width	mm	2490
	Height (non-loaded)	mm	3730
Engine	Model		6HK1 240hp
	Power	kW/rpm	206/2400 240hp
	Torque	N.m/rpm	883/1450
Fuel			Diesel
the highest speed of design		km/h	95
passengers			5
Tire specifications		Standard configuration	10.00-20

Isuzu 6HK1 diesel engine 240hp, MLD six gears transmission, with cool and warm A/C, hydraulic assist, central lock, electric power window, air brake, USB audio, front axle 6.3T, rear axle 13T, tyre 10.00-20, exhaust brake.

Model	SQS200	Unit
Max Lifting Capacity	8000	kg
Max Lifting Moment	20	T.M
Recommend Power	28	kw
Max Oil Flow of Hydraulic System	55	L/min
Max Pressure of Hydraulic System	27	MPa
Oil Tank Capacity	160	L
Rotation Angle	All Rotation
Crane Weight	3300	kg
Installation Space	1200	mm
