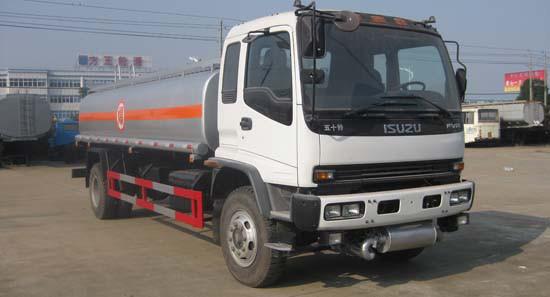

14000L isuzu oil bowser fuel tanker truck

Overall Dimension 7800 * 2500 * 3000 mm
GVW / Kerb Weight 16,050 kg / 6,850 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU engine
Power 190 Ps (140 KW)
Displacement 5193 ml
Emission Standard Euro IV
Chassis Drive Type 4X2, left hand drive
Transmission ISUZU gear box, no overhaul within 500,000km
Wheelbase/No. of axle 4500 mm / 2
Tyre Specification 9.00-20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Tank Capacity 15,000 Litres (About 3,960 gallons)
Tank Material Carbon steel
Pump Equipped for overhead delivery, 1000 litres / min
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers……..
Optional ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)……
** It can be divided into many compartments.
** Devices can be equipped: fuel counter (flow gauge), fuel dispenser, hose reel, level gauge……
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.
