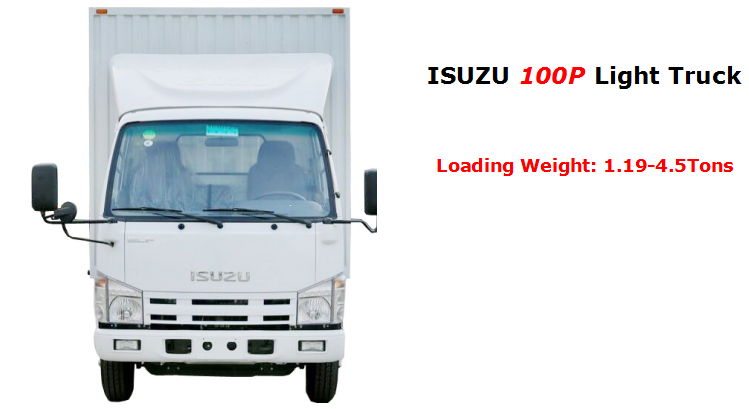

Isuzu 100p elf truck chassis parameters
2017-04-22
ISUZU 100P, New 4JBCN Engine, Displacement: 2800ml, 98HP.
with new cabin, more nice, more comfortable, more safe.
New Light 100P Truck, max. wheelbase: 3815mm, optional one bed. doulbe cabin.
More model for customer choice.
suitable for ISUZU wrecker , 100P Isuzu refrigerator truck, Van Truck, Temperature Truck.ISUZU Fire Water Truck
| Technology advantage |
|

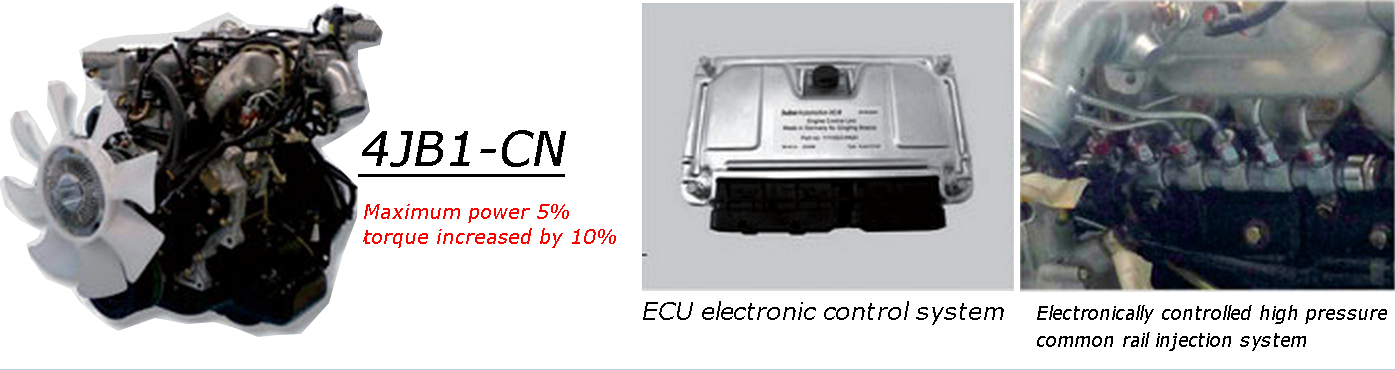

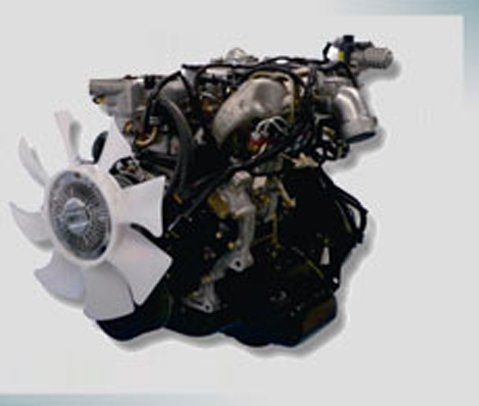

New Isuzu 4JBCN diesel generat
|
|
4JB1CN Displacement: 2.8L maximum power: 98 HP maximum torque:220Nm The new 4JB1CN engine, in succession the Isuzu 4JB1 engine with high reliability, excellent quality under the premise of the international first-class BOSCH diesel electronic control high pressure common rail injection system, the injection system of high pressure can improve the engine emission of visible pollutants, multi injection electronic fuel injector, fuel injection timing, quantitative precision, improvement the noise and vibration of the engine. Pressurized medium cooling technology, electronic control EGR+DOC+POC emission control technology. The engine has the advantages of high power, low fuel consumption, reliability and durability. |
|
More environmentally friendly |
|
ISUZU Euro 4 Trucks to achieve a low emission, low fuel consumption in the life cycle of the vehicle performance, synchronous lifting, lower noise and jitter, smaller vehicles more quiet and comfortable.
More Economic( Fuel -Saving, Urea-Saving)
1.low fuel consumption. Comparing to domestic vehicles with the same payload, it can save at least 10%-15%;
2.no need of urea pot, urea is not required any more,which decrease the costs of users, and this is convenient to refitting purposes.
3. more reliable, have a lower fee of repair.
Stronger oil adaptability
Enhance the adaptability of oil
more cost-effective
High in the same country or abroad four models three models above 10%-20% case, ISUZU only a slight increase of 3-4%.

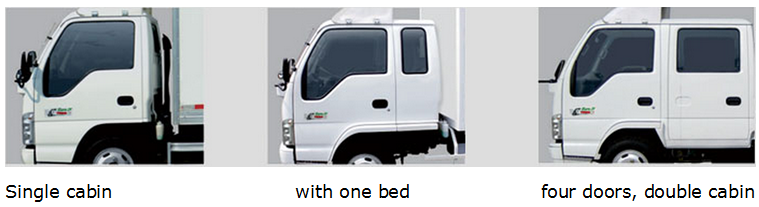

New cab
New Cab styling, the use of headlight steering technology, the new 100P more beautiful, more comfortable, more secure.
New power
Power is more powerful, comprehensive optimization of power and low speed output torque, improve the vehicle full load dynamic performance and climbing performance
New Model:
Our brand new 100P light truck is added with long wheel base of 3815mm;Meanwhile, it enrich the variety of 1.5 row cabin, composite board carriage box, warehouse plate carriage box, refrigerator vehicle and insulated vehicle, which provided more models for users to choose.

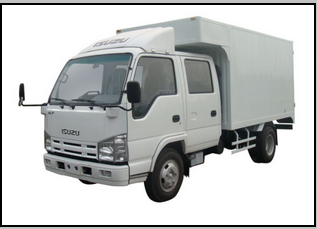

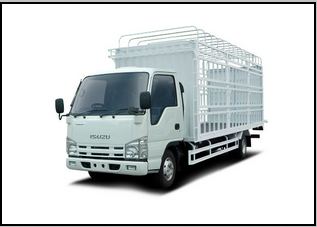

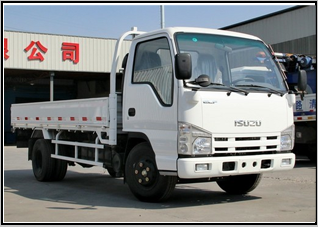

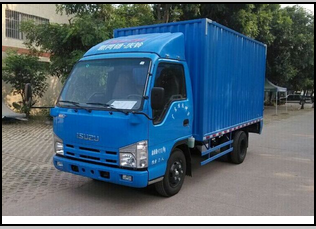

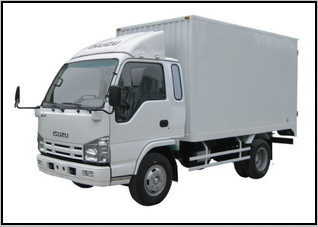

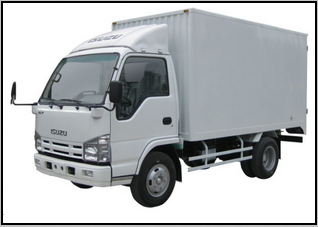

| ISUZU 100P Different Type Trucks Shows |
|
|
|
|
|
|
|
|
|
| ISUZU 100P Chassis Parameter |
|
|
vehicle model |
QL10403EWRY |
QL10403EARY |
QL10403EWR2Y |
QL10413EARY |
QL10403EWR1Y |
||
|
weight |
gross weight |
kg |
4100 |
4200 |
4100 |
3510 |
3620 |
|
Curb weight |
kg |
1820 |
1680 |
1820 |
1680 |
1820 |
|
|
Wheelbsase |
mm |
2490 |
2490 |
2490 |
2490 |
2490 |
|
|
Whole Vehicle Overall Dimension |
Length |
mm |
4605 |
4605 |
4605 |
4605 |
4605 |
|
Width |
mm |
1695 |
1695 |
1695 |
1695 |
1695 |
|
|
height |
mm |
2105 |
2105 |
2105 |
2105 |
2105 |
|
|
Engine |
Model |
4JB1CN |
4JB1CN |
4JB1CN |
4JB1CN |
4JB1CN |
|
|
Emission |
CN 4 |
CN 4 |
CN 4 |
CN 4 |
CN 4 |
||
|
Power |
kW/rpm |
72/3400 |
72/3400 |
72/3400 |
72/3400 |
72/3400 |
|
|
Torque |
N.m/rpm |
220/1700 |
220/1700 |
220/1700 |
220/1700 |
220/1700 |
|
|
Fuel |
Diesel |
Diesel |
Diesel |
Diesel |
Diesel |
||
|
the highest speed of design |
km/h |
98 |
98 |
98 |
98 |
98 |
|
|
passengers |
2+3 |
2 |
2+3 |
2 |
2+3 |
||
|
Tire specifications |
7.00-15 10PR |
7.00-15 10PR |
7.00-15 10PR |
7.00-15 10P |
7.00-15 10PR |
||
|
7.50-15 12PR |
7.50-15 12PR |
7.50-15 12PR |
7.00R15 10PR |
7.00R15 10PR |
|||
|
7.00R15 10PR |
7.00R15 10PR |
7.00R15 10PR |
|
|
|||
|
7.50R15 10PR |
7.50R15 10PR |
7.50R15 10PR |
|
|
|||
|
vehicle model |
QL10403FWRY |
QL10403FARY |
QL10413FARY |
QL10503FWRY |
QL10703KARY |
QL10703KAR1Y |
QL10703KWRY |
||
|
weight |
gross weight |
kg |
4290 |
4499 |
3780 |
4645 |
7300 |
7300 |
6725 |
|
Curb weight |
kg |
1960 |
1810 |
1810 |
1960 |
2050 |
2110 |
2200 |
|
|
Wheelbase |
mm |
2765 |
2765 |
2765 |
2765 |
3815 |
3815 |
3815 |
|
|
Whole Vehicle Overall Dimension |
Length |
mm |
5230 |
5230 |
5230 |
5230 |
6645 |
6645 |
6645 |
|
Width |
mm |
1860 |
1860 |
1860 |
1860 |
1880 |
1980 |
1880 |
|
|
height |
mm |
2180 |
2180 |
2180 |
2180 |
2220 |
2220 |
2220 |
|
|
Engine |
Model |
4JB1CN |
4JB1CN |
4JB1CN |
4JB1CN |
4JB1CN |
4JB1CN |
4JB1CN |
|
|
Emission |
CN 4 |
CN 4 |
CN 4 |
CN 4 |
CN 4 |
CN 4 |
CN 4 |
||
|
Power |
kW/rpm |
72/3400 |
72/3400 |
72/3400 |
72/3400 |
72/3400 |
72/3400 |
72/3400 |
|
|
Torque |
N.m/rpm |
220/1700 |
220/1700 |
220/1700 |
220/1700 |
220/1700 |
220/1700 |
220/1700 |
|
|
Fuel |
Diesel |
Diesel |
Diesel |
Diesel |
Diesel |
Diesel |
Diesel |
||
|
the highest speed of design |
km/h |
98 |
98 |
98 |
98 |
95 |
95 |
95 |
|
|
passengers |
2+3 |
2 |
2 |
2+3 |
2 |
2 |
2+3 |
||
|
Tire specifications |
6.50-15 10PR |
6.50-15 10PR |
6.50-15 8PR |
6.50-15 10PR |
7.00-16 14PR |
7.00-16 14PR |
7.00-16 14PR |
||
|
6.50R15 10PR |
6.50R15 10PR |
6.50R15 8PR |
6.50R15 10PR |
7.00R16 14PR |
7.00R16 14PR |
7.00R16 14PR |
|||
|
vehicle model |
QL10423HARY |
QL10403HARY |
QL10403HWRY |
QL10503HWRY |
QL10603HARY |
QL10503HAR1Y |
||
|
weight |
gross weight |
kg |
3650 |
4475 |
4480 |
5300 |
5800 |
5300 |
|
Curb weight |
kg |
1700 |
1850 |
2050 |
2050 |
1850 |
1850 |
|
|
Wheelbase |
mm |
3360 |
3360 |
3360 |
3360 |
3360 |
3360 |
|
|
Whole Vehicle Overall Dimension |
Length |
mm |
5900 |
5900 |
5900 |
5900 |
5900 |
5900 |
|
Width |
mm |
1860 |
1860 |
1860 |
1860 |
1860 |
1860 |
|
|
height |
mm |
2180 |
2180 |
2180 |
