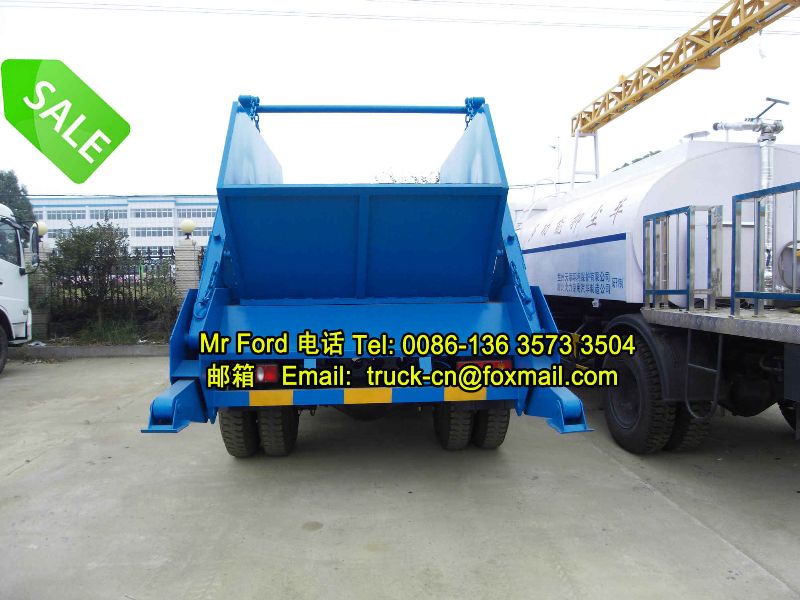

Dongfeng kinrun 8000L skip loader garbage truck skip loader garbage truck 0086-13635733504

Dimensions   in mm

Wheel base

5000

Overhaul length

8900

Overhaul width

2500

Overhaul height

2980

Tread

Front

1880

Rear

1800

Ground clearance

250

Cob to 2nd rear axle

3736

Cab to end of frame

5556

Frame width

860

Front overhang

1430

Rear overhang

2470

Actual weight  in kg

Kerb mass

7950

Max. G.V.W

21950

Front axle payload

7500

Rear axle payload

14450

Rated payload

14000

Caluated performance

Max speed with full load and peak output of engine km/h

100km/h

Max grade ability %

30%

Min turning radius m(ft)

8

Engine

Model

Cummins Euro 3 diesel engine

Type

Turbocharging, water cooled, electronically controlled common rail injection

No.of cylinders

6 inline

Piston displacement

6700cc

Max. output

155(KW) /2500(rpm)

Max. torque

800(N.m) /1200-1700(rpm)

Alternator

28V,70A
