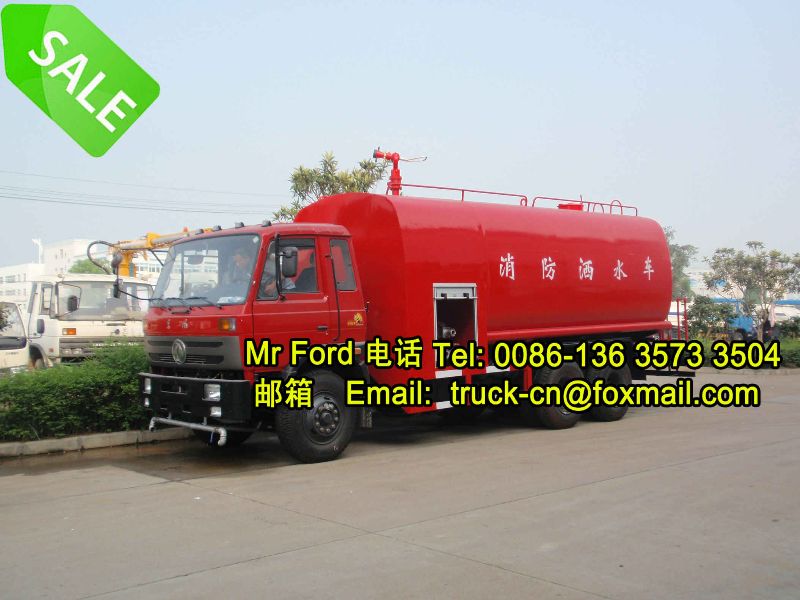

18T fire fighting water truck fire fighting water truck
1 Multifuction Fire fighting and water spray
2 Cummins engine 210hp
3 Capacity 18T
Dongfeng 6*4 15000L to 18000Lts Water Tank Fire Fighting Truck specification:
1. outside dimension: 9900x2480x3250mm
2. Chassis model: EQ1258KB3GJ
3. Capacity of tank body:18000L. 5mm thickness tank body.
4. Total weight: 30705kgs
5. Loading weight: 20750kgs
6. kerb weight: 9805kgs
7. Fuel type: diesel
8. Engine:
| Engine model | Manufacturer | Displacement | Power |
| B210 33 | Dongfeng Cummins engine | 5900CC | 155kw |
9. Wheelbase(MM): 4350+1300,4350+1350
10. Driving type: 6x4
11. Tyre: 10.00-20 or 10.00R20
12. Dongfeng 5Tons front axle, 10Tons Double rear axle. Six forward gear, mechanical transmission, air brake
13. High quality carbon steel Q235-A 4mm or 5mm thickness.
with fire monitor and sandwich Power tank off.
Fire Pump: CB10/30 OR CB10/40
FIRE monitor: PP32
Dongfeng Water Tank Fire Fighting Truck equips with Special Fire pump, fire monitor, fire Power Take Off. The fire monitor can be installed on the top of tank or at the rear of truck. With fire Connection, can be fill water through Fire Hydrant, with self-discharge valve.
