Dongfeng 10000L high pressure water cleaning truck 0086-13635733504
2017-02-18
Dongfeng 10000L high pressure water cleaning truck 0086-13635733504

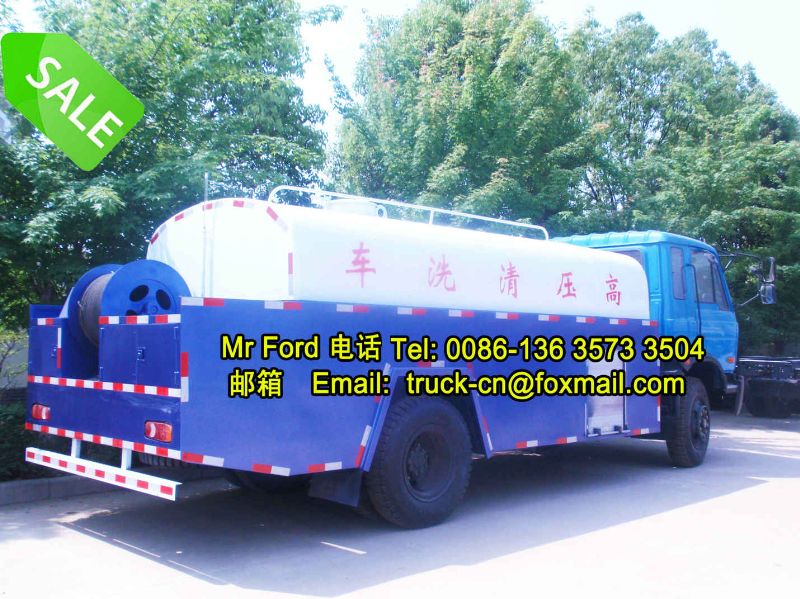

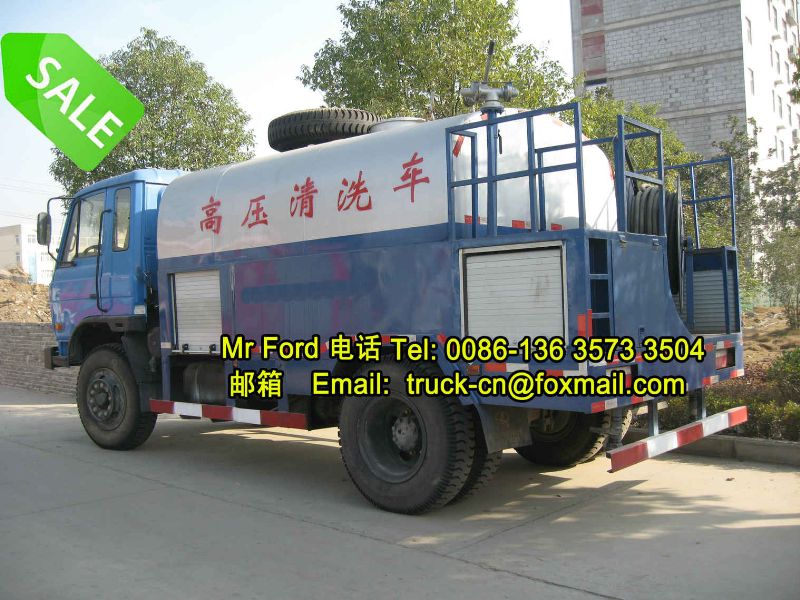

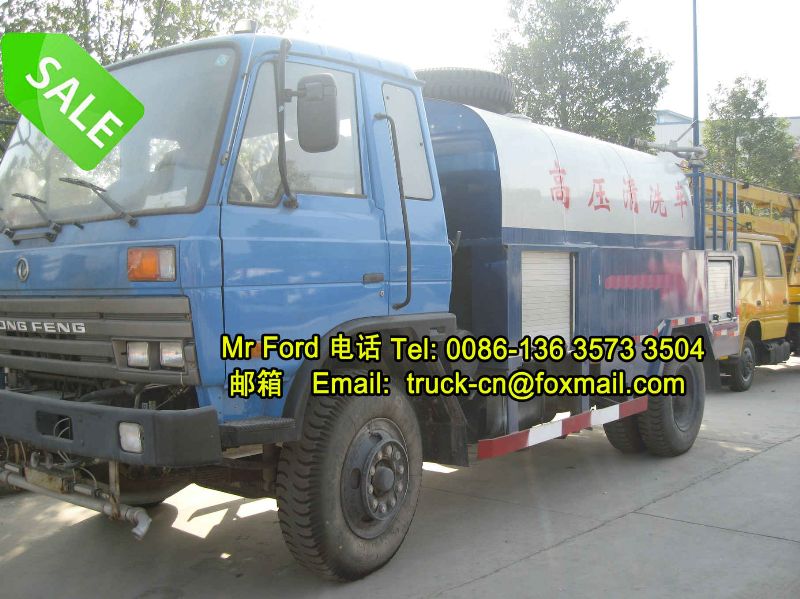

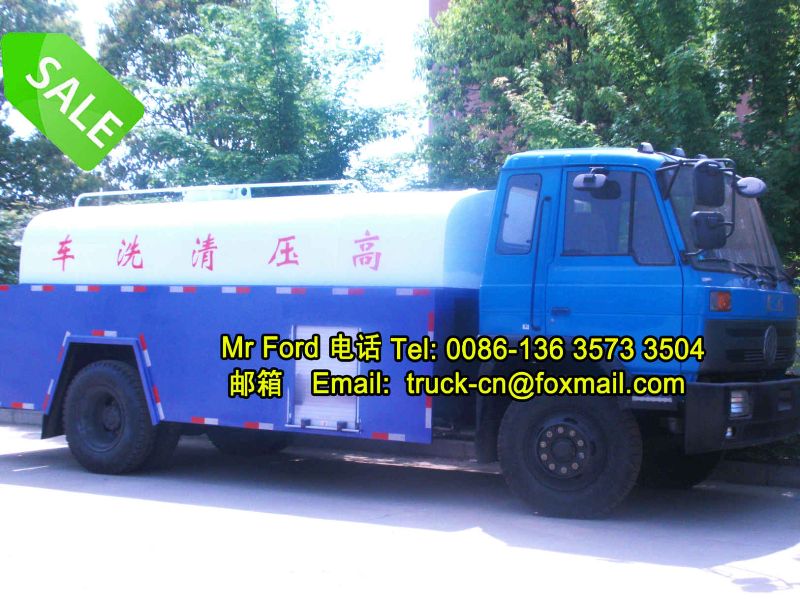

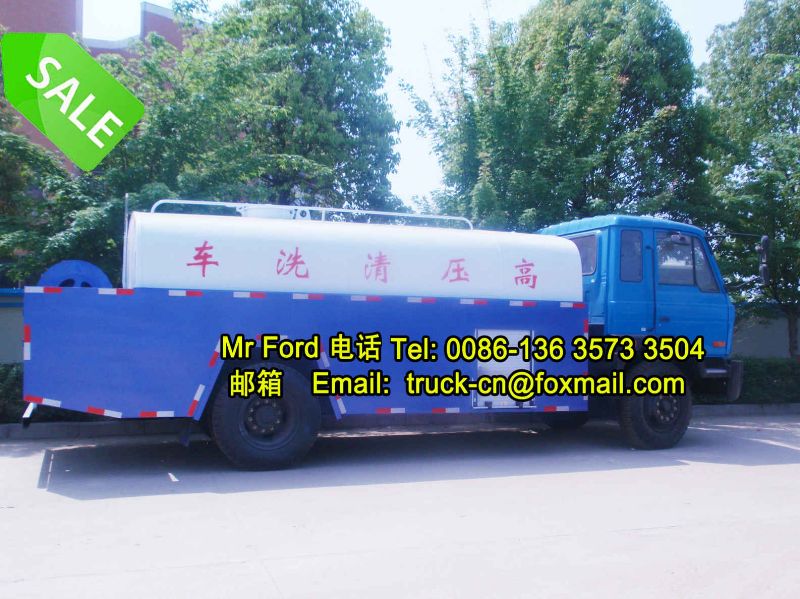

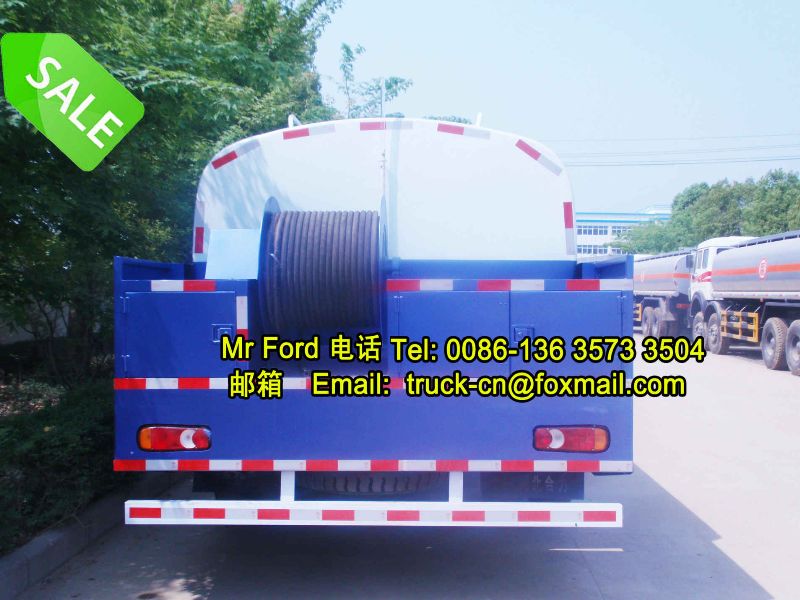

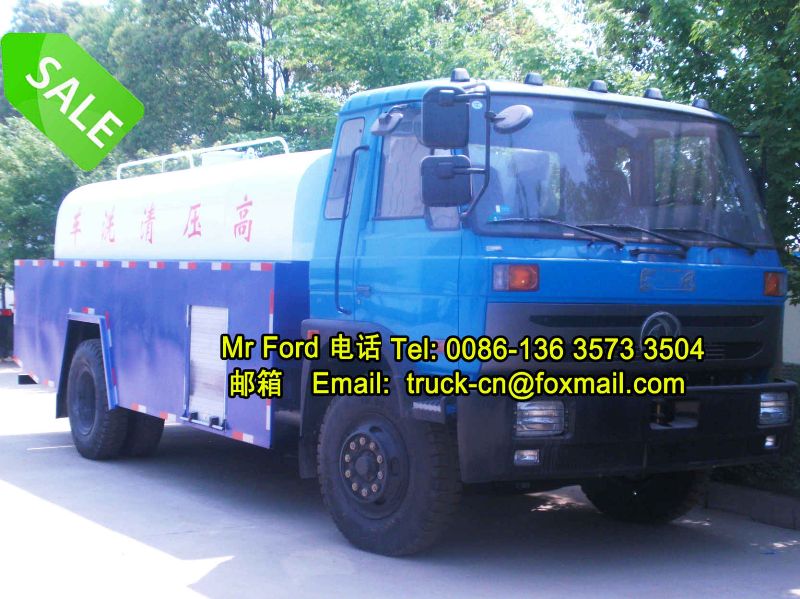

Dongfeng 10000L high pressure water cleaning truck
1 Cummins engine 190hp
2 Powerful pump
3 A/C, lighter
|
ITEM |
PARAMETER |
UNIT |
DATA |
REMARK |
|
|
Whole vehicle |
Vehicle model |
|
|
||
|
Manufacture date |
|
|
According to you |
||
|
Overall dimension |
Mm |
8050x2500x3080 |
According to you |
||
|
GVW |
KG |
14900 |
|
||
|
Curb weight |
KG |
7405 |
|
||
|
Max Loading capacity |
KG |
10000 |
|
||
|
Max Gradablity When full loading |
Deg |
32 |
|
||
|
Max speed |
Km/h |
85 |
|
||
|
Front/rear hanging |
Mm |
1205/2345 |
|
||
|
Close/departure angle |
Deg |
25/15 |
|
||
|
Leaf spring |
Pcs |
8/10+8 |
|
||
|
Drive wheel |
|
4*2 |
|
||
|
Chassis |
Chassis model |
|
EQ1141KJ |
|
|
|
Manufacture |
|
DongFeng Motors company |
|||
|
Manufacture date |
|
|
|||
|
Front axle |
kg |
5000 |
|
||
|
Rear axle |
kg |
10000 |
|
||
|
Wheelbase |
mm |
4500 |
|
||
|
Fuel tank |
L |
280 |
|
||
|
Tire Specification |
|
10.00-20 |
|
||
|
Nos of tire |
Pcs |
6+1 |
|
||
|
Engine |
Engine model |
B190 33 |
|||
|
Manufacture |
DongFeng Cummins Engine Co.,Ltd |
||||
|
Power |
136 |
|
|||
|
Engine Horse power |
185 |
|
|||
|
Displacement |
5900 |
|
|||
|
Emission Standard |
EURO III |
||||
|
Engine details more |
Direct injectionArrayArray | ||||
