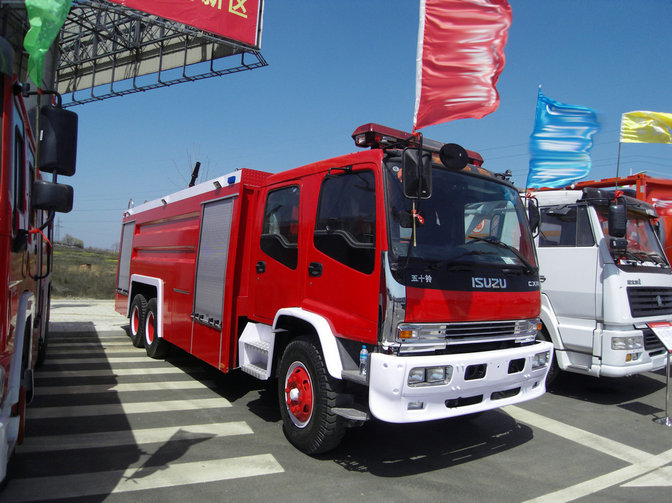

  • Product description: Isuzu water fire engine

PRODUCT INTRODUCTION

FIRE FIGHTING VEHICLE
Chassis Model /Manufacturer ISUZU QL1150WQFR
cab Double cabin (four doors )
Overall Dimension L×W×H mm 9600x2500x3920
Total Mass Kg 20,290
Rated Payload Kg 10000
Kerb Weight Kg 9900
Approach / departure angel 26/14
Front/rear suspension mm 1335/1900
Fuel type Diesel
Fuel consumption L/100km 18
Ground clearance mm 248

Engine Model/Rated Power 6HK1-TCN
Displacement/ power 7790/178kw （240HP）
Emission Standard Euro Ⅲ
manufacturer ISUZU motor Co., Ltd.
Diesel 4-stroke, 6-cylnder in line with water cooling, turbo charging
driving type 4*2
Wheel base 5500mm
Front/rear tread 1960/1855
Front axle 6.3T front axle
Rear axle 13T rear axle
Steering Power steering
Cultch Single dry diaphragm spring cultch
Brake system Air brake, exhaust brake、air cut brake
Gear box ISUZU MLD six forwards
Number of leaf spring of suspension 9/14
Type & Size of Tyre 10.00-20
Max Speed Km/h 90



Technical parameter of fire fighting body
Liquid tanker Volume: total 6000L, Water tank 6000L
Material: high quality carbon steel
Structure: welding, there is baffle plate inner.
Equipment: 2 manholes, with speediness lock and turn on equipment.
2 overflow mechanisms
2 drainage exits
Fire fighting pump and pipeline system Model of Fire fighting pump: CB10/40
Pressure: 1.0Mpa
Flux: 40L/s
Suction depth: ≥7m
Suction time: ≤35s
Installing type: central or rear
Pipeline system:
Suction pipeline: there is Ø125mm water inlet, can sop natural water source and sop the water from liquid tanker.
Water outlet pipeline: there is one middle pressure water outlet on every side, and gun pipeline with dia.≥80mm on the top of tanker.
Discharge remaining water system: to protect pump and all ball valves,
Fire fighting
monitor
消防炮 型号：PP32型消防炮
射程：水≥50m，泡沫≥45m
压力：1.0MPa
Model: PP32
Range: water≥50m  foam≥45m
Pressure: 1.0Mpa.
PTO 采用夹心式取力器，飞溅式润滑，能满足边行驶边灭火功能。
Sandwich PTO, splashing-type lubricate, can put out fire when driving.
Material of carriage 整车车厢采用优质钢材和花纹铝板制造。
Carriage is made of high quality carbon steel and Aluminum embossed sheet
