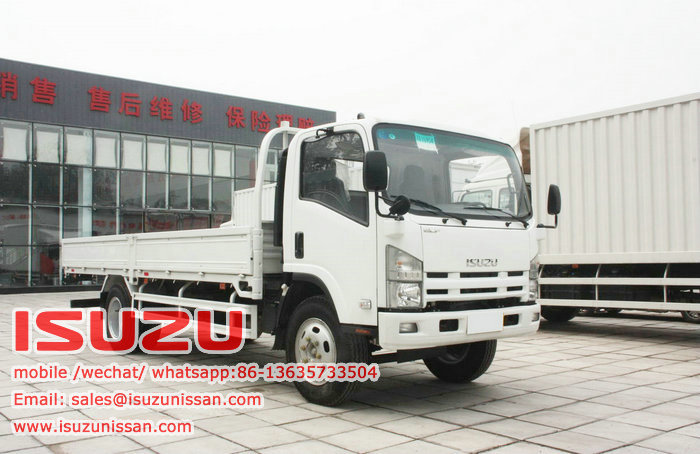

Isuzu ELF lorry truck

Truck parameters

Chassis model

QL1090

Cargo box size

5050x2150x450mm

Side 3mm, bottom 4mm

White color

Overall dimensions

7050x2307x2550mm

Wheel base

3815 mm

Front/rear wheel track

1680/1650mm

Front/rear suspension

1110/2602mm

Approach/departure angle

21/10°

Maximum speed

110km/h

Chassis Manufacturer

QingLing Motors (Group) Co., Ltd.

Isuzu 4HK1 diesel engine 190hp, Euro 4 emission,  MLD six gears transmission,  with A/C,  hydraulic assist, front axle 4T, rear axle 7T, tyre 8.25-16,  oil brake, truck cabin tiltable forward lifting, cabin can be flipped.

Cab

Configuration

700P, single cabin, allowable 3 passengers, air conditioner, USB radio interface, cab can be flipped.

Color

White

Engine

Model

4HK1

Emission

Euro 4

Rated power

190hp

Displacement

5193ml

Manufacturer

Isuzu Engine (Chongqing) Co., Ltd.

Tire

Size

8.25-16

Number

6+1 nos

Brake

oil brake

Frame

216X60(6+3)mm

Front axle

4.0 tons

Rear axle

7.0 tons

Drive form

4X2

Suspension

Multi leaf springs

Rated voltage

24V,DC

Transmissions

Isuzu MLD six speed transmission, 6 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive
