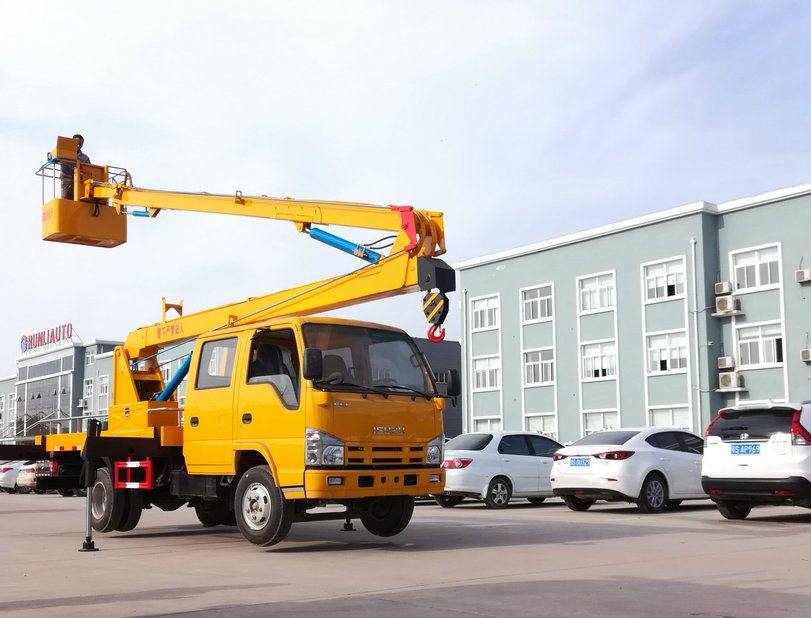

Isuzu ELF 600P high altitude truck platform truck

Cabin / Passenger Capacity

Double row Seat, tiltable cabin, 2+1 passenger.

Opting single row seat cabin.

Chassis

Model

QL1070A1KAY/KWY

Overall dimensions

8450/2050/3050 mm

G.V.W

6705 kg

Net weight

6380 kg

Number of axles

2

Drive type

4x2

Wheelbase

3815 mm

Axle-load

1015/2280 kg (one rear driving axle)

Number of Spring leafs

8/6+5

Track F/R

1504/1425 mm

Tire ( No. & specification)

7.00-16, 6pcs+1pc

Max speed (Km/h)

≥ 95 km/h

Brake system

Hydraulic braking

Steering

Power steering

Transmission

I-S-U-Z-U MLD, Mechanical 5 forward + 1 reverse

Engine

Engine model

4KH1-TCG40 (EURO 4, I-S-U-Z-U engine)

Type of fuel

Diesel

Power

88 kw (120 hp)

Exhaust

2999 ml

High altitude

Operation

system

Max. Operation height

14 meters

Working bucket load capacity

200 kg

Hydraulic landing leg

4-pc

Working radius

5~7.3 meters

Angle of rotation

360°

Working boom

Knuckle fold arm boom working boom

Operation mode

Manual with auto-control

Control system

Control system hydraulic motor components is Eaton brand which original is imported from the United States.

Balance valve original is imported from the Denmark. Taiwan Sealing rings from Taiwan. Multiple unit valve

from Turkey. Other major supporting parts such as hydraulic cylinder, hydraulic lock, etc. are selected domestic

famous brand.

Safety system

The main force structure with high strength steel, reliable quality. Advanced multiplex control valve control components,

operating stepless speed regulation; upper and lower arm limit function, double interlocking function, emergency engine

flame out and restart function; Three control for working platform, a turntable, automatic, to ensure the safety of workers.
