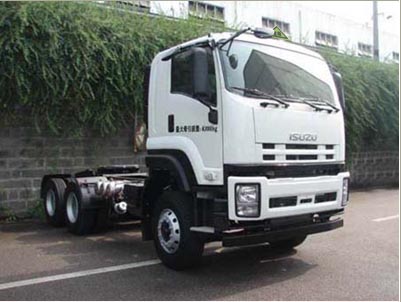

ISUZU 6x4 tractor truck flat cabin

High safety 6*4 350hp 25t diesel truck head tractor Products Name
High safety made in china 6*4 350hp 25t diesel truck head tractor
Model No.
QL4250UKCZ
Driving type
6X4
Wheelbase(mm)
3425+1300
Overall dimension(m)
7*2.5*3
Total mass(t)
25
Engine
6UZ1-TCG40 350HP Euro-4
Cab
Single row
Tire
295/80R22.5
Fuel tank capacity(L)
400



Cab
The cab adopts a high strength galvanized steel plate and a sealed structure which forms an effective anti-collision protection area for the safety of driver. Special material such as engineering composite resin is employed in the key easy corrosion position which greatly improvs the anti-corrosion performance of cab.The seats adopt a double density foaming with good elasticity which will not easily be deformed, refreshing comfort. Interior trim applies the premium native plastic with


High quality chassis
With rich varieties of engine power specifications, wheel base series and payload tonnages, we produce more than 10 kinds of chassis for all sorts of refitted vehicles on the market.The straight frame with equal width design is convenient for placements and connections for various refitting purposes.The straight frame with equal width design is convenient for placements and connections for various refitting purposes


Frame
The frame features high loading capacity. Its specification is 258×80×10 with U shape structure.It not only meets loading requirement, but also requirements for various refitting purposes.

Axles
Front axle: The whole end punch type of F063 front axle is produced by the world most advanced forging equipments and processes. It can bear max 6.3Ton with a great bearing capacity and reliable quality.

Rear axle: RT210 rear axle is produced by the world most advanced production lines and processes including punching,welding, machining and assembly. It can take as much as 21Ton which fully meets the requirement of customers.
