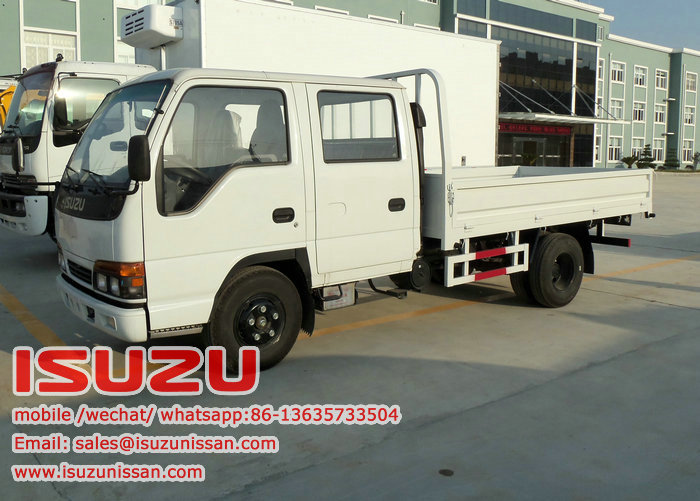

  • Product description: ISUZU 100P truck chassis

PRODUCT INTRODUCTION











Products Technical Specification

Product Name

4x 2 Isuzu  truck 3T

Brand-Series

ISUZU-100P

Chassis Model

QL10403

Emission Standard

Euro 4

Fuel type

Diesel

Cabin

crew cabin double row, with A/C

Whole vehicle
main dimensions (mm)

Overall dimensions (L×W×H)

4870*1764*2670

Crago body dimensions  (mm)

3200*1600*500

Side board 3mm, bottom board 4mm

Wheel base        (mm)

3360

Front overhang        (mm)

1015

Rear  overhang     (mm)

1365

Min. ground clearance  (mm)

505

Weight data (kg)

G.V.W kg

4100

Curb weight (chassis) kg

2520

Max payload kg

3000

Whole vehicle
main performance

Max. speed (km/h)

98

Max. slope of climb (%)

30

Engine

Model

4JB1CN

Rated power (kw/rpm)

72kw / 3400

98hp

Displacement (L)

2.771

Number of cylinders

4

Max torque (N.m/rpm)

206 / 1700

Transmission

Number of gears

MSB,5 forward gears & 1 reverse

Rear axle

capacity

3tons axle

Suspension

Front

6- Leaf spring

Rear

5-leaf spring

Steering Wheel

left/right hand drive

LHD

Brake system

Service brake

oil braking

Electric device

Rated voltage

24V

Tyres

7.00-15

Isuzu 4JB1CN diesel engine 98hp, Euro 4 emission,  MSB five gears transmission,  with cool and hot A/C, steering hydraulic assist, front axle 2.5T, rear axle 3T,  tyre 7.00-15,  double circuit type oil brake with vacuum assist pump. Audio, with USB port radio.
