Isuzu vacuum suction truck vacuum tanker truck send to Qatar

  • Isuzu vacuum suction truck vacuum tanker truck send to Qatar
Isuzu vacuum suction truck vacuum tanker truck send to Qatar
1 unit Isuzu vacuum suction truck vacuum tanker truck send to Qatar on Dec, 22nd, 2018

Qatar customer Mr Glenn need use vacuum suction truck to collect and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff solid waste such as small stones, bricks as well.  High class premium quality isuzu truck with robust vacuum tank, best offer many factors effect Mr Glenn changed his decision, finally he ordered 1 unit Isuzu vacuum suction truck vacuum tanker truck.

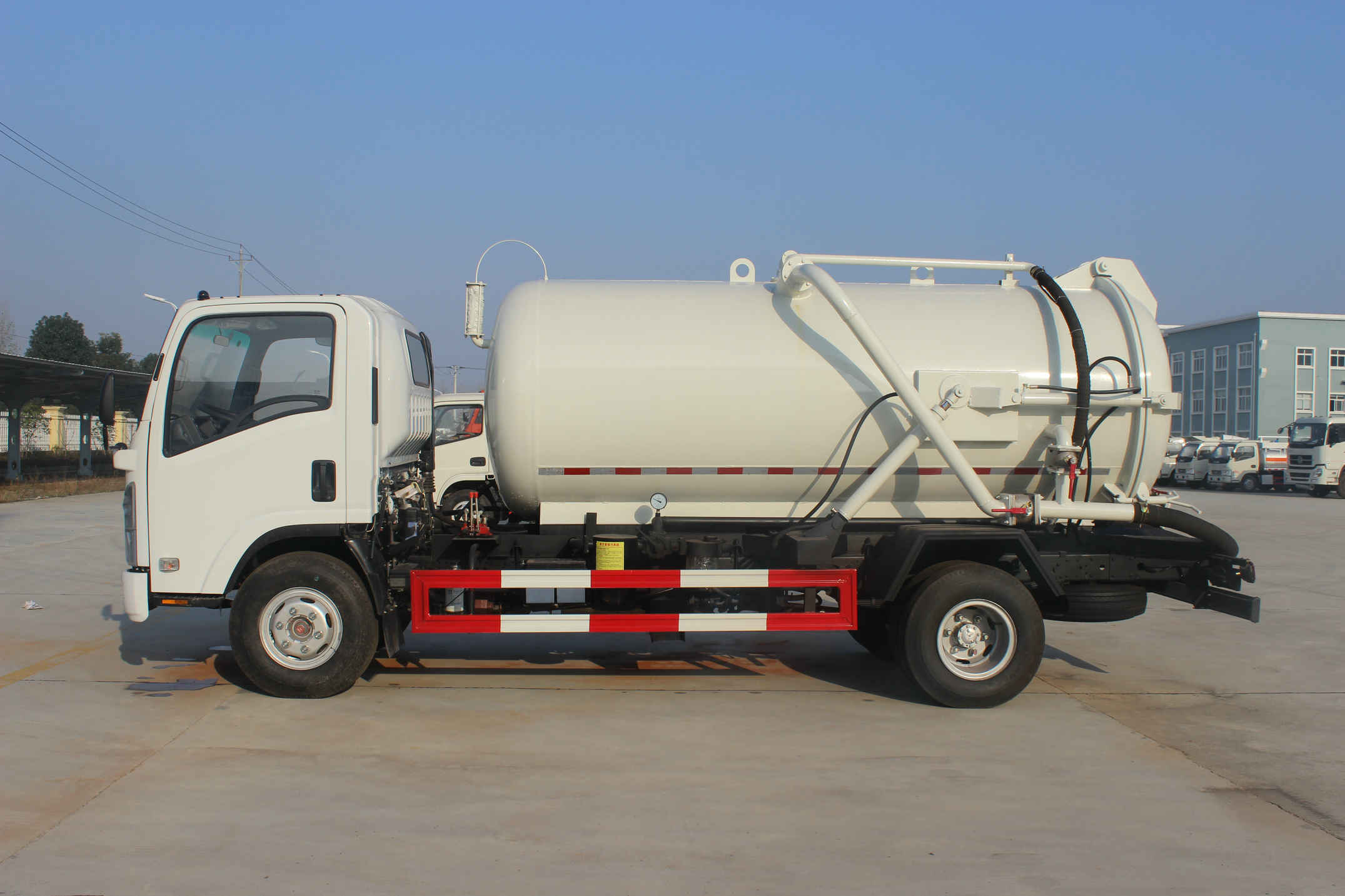

Isuzu vacuum suction truck adopt Isuzu 700p elf truck chassis, Isuzu 4HK1 diesel engine 190hp,  MLD six gears transmission,  with A/C,  hydraulic assist, front axle 4T, rear axle 7T, tyre 235/75R17.5,  double circuit type oil brake.
PTO is mounted onto the gearbox, drive the hydraulic pump
Via drive shaft to drive the hydraulic equipments Pneumatic clutch is connected with the pulley to drive the vacuum pump
1. Equipped with hydraulically opened rear lid with self- discharging, high vacuum degree and sucking range
2. Equipped with self-priming and self-draining vacuum pump (rotate max suction lift>6m, vacuum>500mmHg, clockwise)
3. Time for full suction<5min
